Custom Pvc Wire Making Machine / OEM Cable Wire Manufacturing Machines

China Custom Pvc Wire Making Machine / OEM Cable Wire Manufacturing Machines supplier

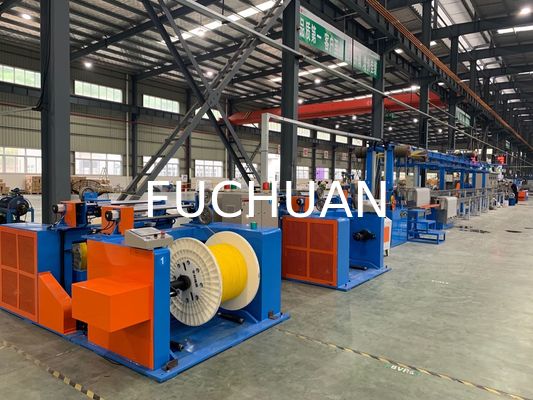

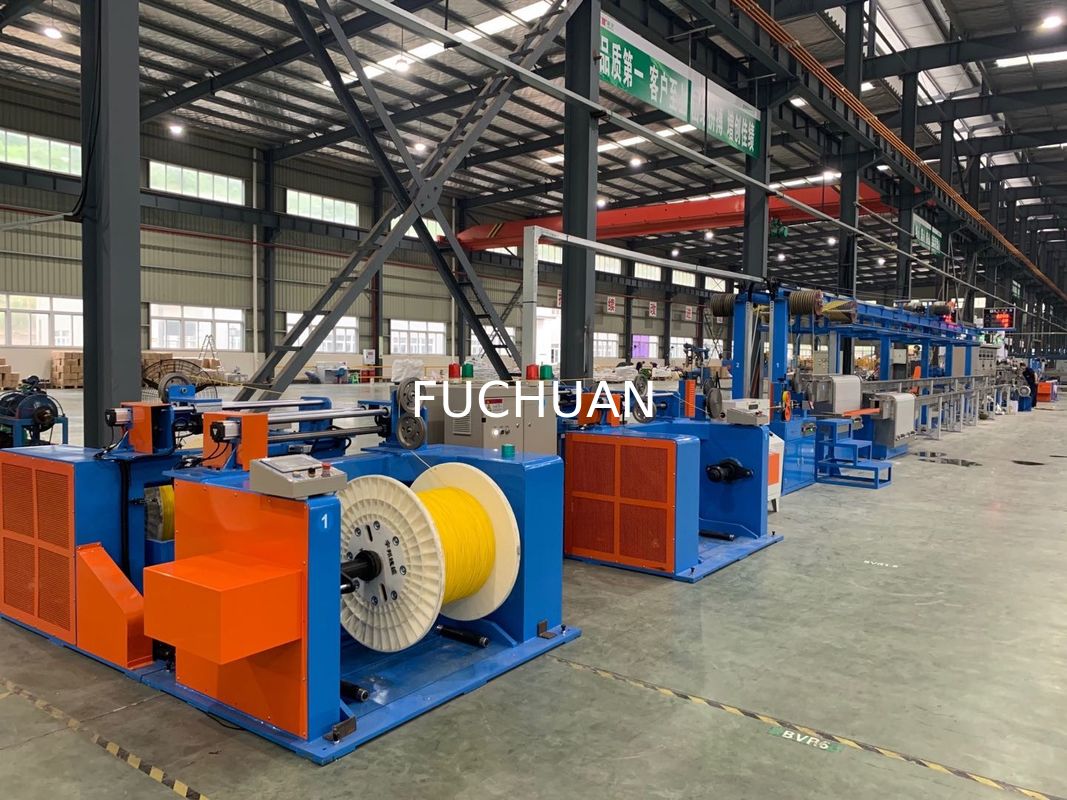

Large Image :  Custom Pvc Wire Making Machine / OEM Cable Wire Manufacturing Machines

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-500B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 sets one year
Contact Now
Detailed Product Description
Name: Wire Extruder Machine Single Wire Dia(mm): Φ0.08~0.45
Stranding Section Area(mm²): 0.05~2.5 Core Wire Single Wire Dia(mm): Φ0.5~1.5
Core Wire Stranding Outer Dia(mm): Φ1.0~3.0 Application: Bare Copper Wires , Tinned Wires

Custom Pvc Wire Making Machine / OEM Cable Wire Manufacturing Machines



Pvc Wire Making Machine Specification:



A. FC-1600magnetic passive type pay off machine

a. Type: shaftless

b. Fit for wire: dia 8- dia 20mm

c. Fit for bobbin: dia1000-1600mm

d. Tension/brake: 20kgf magnetic bobbin

e. Top pressing type: pneumatic clench and loosen bobbin



Pvc Wire Making Machine Specification:



Equipment usage BV building wire LAN cable-2
Inlet copper wire diameter Φ2.5~3.0mm Φ2.5-3.0mm
Outlet copper wire diameter Φ0.8~1.78mm Φ0.4-0.9mm
Extrusion finished wire diameter Φ2.0~5.0mm Φ0.7-1.5mm
max speed 300 1200
max die number 17 17
Mechanical reduction ratio 20% 20%
Capstan reduction ratio 15% 15%
drawing power 45KW 45KW
Annealing type DC 3phase DC 3phase
Wire accumulator rack Vertical accumulator Vertical accumulator
Extruder main machine 70 65
Injection machine 45Horizontal injection machine 35Horizontal injection machine
Extruder main machine power 22KW 22KW
Printer Double head printer Single head printer
Cooling water tank Double layer Double layer
Capstan 510Double wheels 410double wheels
Wire accumulator Horizontal Horizontal
Take up machine Shaft or coiling machine Shaft



Other information:



active pay off or passive pay off



Terms of payment:



FOB Shanghai / Ningbo



Payment terms:



30% down payment,70% before shipment



Delivery time:



45-60 days after receive the downpayment



Origin:



China



Minimum order:



1set
