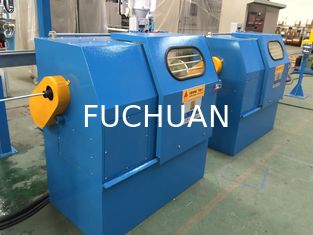

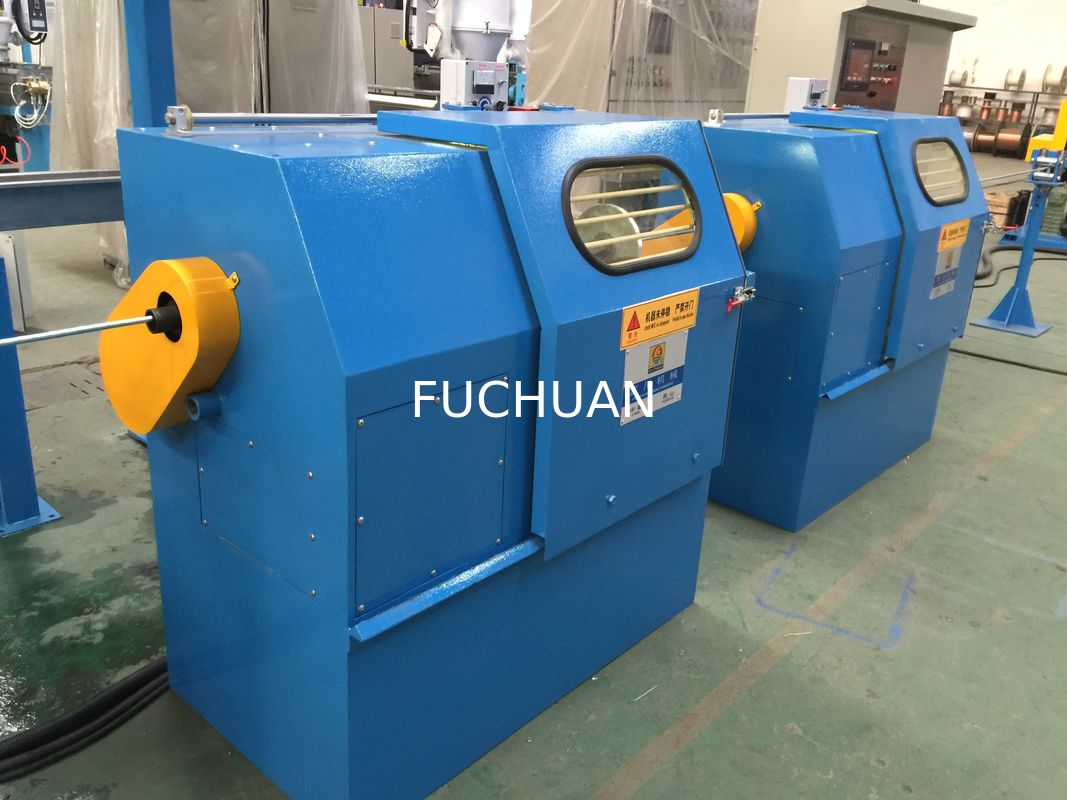

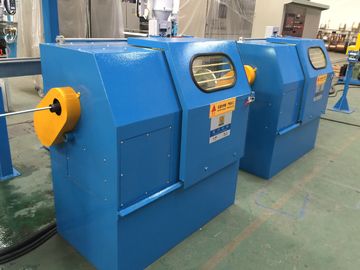

Fully Automatic Wire Extruder Machine With PLC Program Controller

Fully Automatic Wire Extruder Machine With PLC Program Controller
Fully Automatic Wire Extruder Machine With PLC Program Controller

Large Image :  Fully Automatic Wire Extruder Machine With PLC Program Controller

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-400B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 sets one year

Fully Automatic Wire Extruder Machine With PLC Program Controller

Description
Name: Wire Extruder Machine Single Wire Dia(mm): Φ0.05~0.32
Feature: Fully Automatic Pitch(mm): 3.1~33.3(24Classes)
Controller: PLC Program Controller Take-up Bobbin(mm)  Outer Dia*bore*outer Width: Φ300*Φ30*185 / Φ400*Φ56*300
High Light:

wire extrusion machine

,

wire stranding machine

Fully Automatic Wire Extruder Machine With PLC Program Controller



Wire Extruder Machine Characteristics:



High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire;Achieve bunching instead of twisting, especially for twisting small cross-section area;Use synchronous belt drive;Change guide wheel to change lay distance, easy to operate.



Wire Extruder Machine Merits:

  • Spindle lubrication: butter lubrication (Oil lubrication defects: the oil’s temperature increases while high-speed operation , and the oil mist will concentrate into beads on the wall , falling to the reel and pollute the conductor, cause blister when conduct insulating )
  • Security protection: If the door contact is not in place, lift contact is not in place, internal and external wire broken error display in the touch screen on the automatic alarm or can not start to work
  • Spindle andþ aluminum disc ¨rotation arm finish: after high-speed dynamic balancer processing; noise less than dB
  • Electrical control: user-friendly touch screen interface operation, control by the PLC programmer + inverter
  • Flyer Bow :þ Japan imported SK5, finished with heat treatment, the surface of hard chrome þ Imported fiber glass Transmission system: drive with synchronous belts , laying accurate, no internal lubrication position, no waste products effect by refueling and machine cleaning
  • Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet
  • Meter counting way: internal meter counter,

Wire Extruder Machine Parameters



Equipment Model FC-200B FC-300B FC-400B
Twisting Usage Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Single Wire Dia(mm) Φ0.016~0.08 Φ0.05~0.28 Φ0.05~0.32
Stranding Section Area(mm²) 0.0014~0.035 0.0137~0.45 0.0137~1.0

Pitch(mm)
0.8-4.0(14 Classes) 1.6-21.6(24Classes) 3.1~33.3(24Classes)
Direction of Lay optional for right or left
Take-up Bobbin(mm)
Outer dia*bore*outer width
Φ200*Φ31*135 Φ250*Φ30*185 Φ300*Φ30*185 Φ300*Φ30*185 Φ400*Φ56*300
Max Rotating Speed(rpm) 5000RPM(10000TPM) 3500RPM(7000 TPM) 3500RPM7000TPM)
Main Motor Power 2.2KW 3.7KW 3.7KW
Inverter Power 2.2KW 3.7KW 3.7KW
Tension Control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch 0.05kgf 0.6kgf 0.6kgf
Protection automatically brake/stop 1)wire inside and outside is broken; 2)the preset length is arrived
Brake Mode Electromagnetic brake
Traversing Method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Mode Touch Screen Operation
Dimension 2000L*960W*1100H 2300L*1100W*1330H 2850L×1150W×1350H



Mechanical Performance

  • Body structure:

1.Material: low carbon steel welded together.

2.Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.

  • Bunching Entry part:

1.Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2.Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)

  • Spindle:

1.Material: 40Cr steel forging after quenching and tempering treatment.

2.Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3.Dynamic balance: Standard of G2.5 (0.03g of weight difference)

  • ¨Aluminum plate / ¨ Rotation Arm

1.Material:¨ ZL104 / ¨45# steel

2.Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3.Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)

  • Bow

1.Material: ¨ Japan imported SK5 ¨ Imported fiber glass

2.Shape: special appearance, reduce the wind resistance.

3.Weight tolerance : less than 0.03 grams per pair

  • Transmission part: with imported synchronous belt drive, laying length accurate
  • Wire entry wheel:

1.Material: # 45 steel finished with heat treatment HRC30-40.

2.Hard chrome plated on the surface, not easy to wear

  • Spare parts sheet
No. Description Model Qty Remark
1 Spindle guide wheel (with Bearings) 1SET
2 Wire guide wheel (with Bearings) 1SET
3 Loops in Bow   3pcs
4 Split plate porcelain ring Φ6.8 3pcs
5 Stranded Die Client provide
6-9 Timing belt   1pcs
10 Spool Top sleeve According to customer’s reel drawings 1SET
11 SKF Butter LGMT2/1

1

Bottle

1KG
12 Grease gun   1pcs
13 Tool With hex wrench, open wrench and etc 1SET
14 Operating instructions   1SET
15 Electrical Schematic   1SET
16 Inverter manual   1pcs
