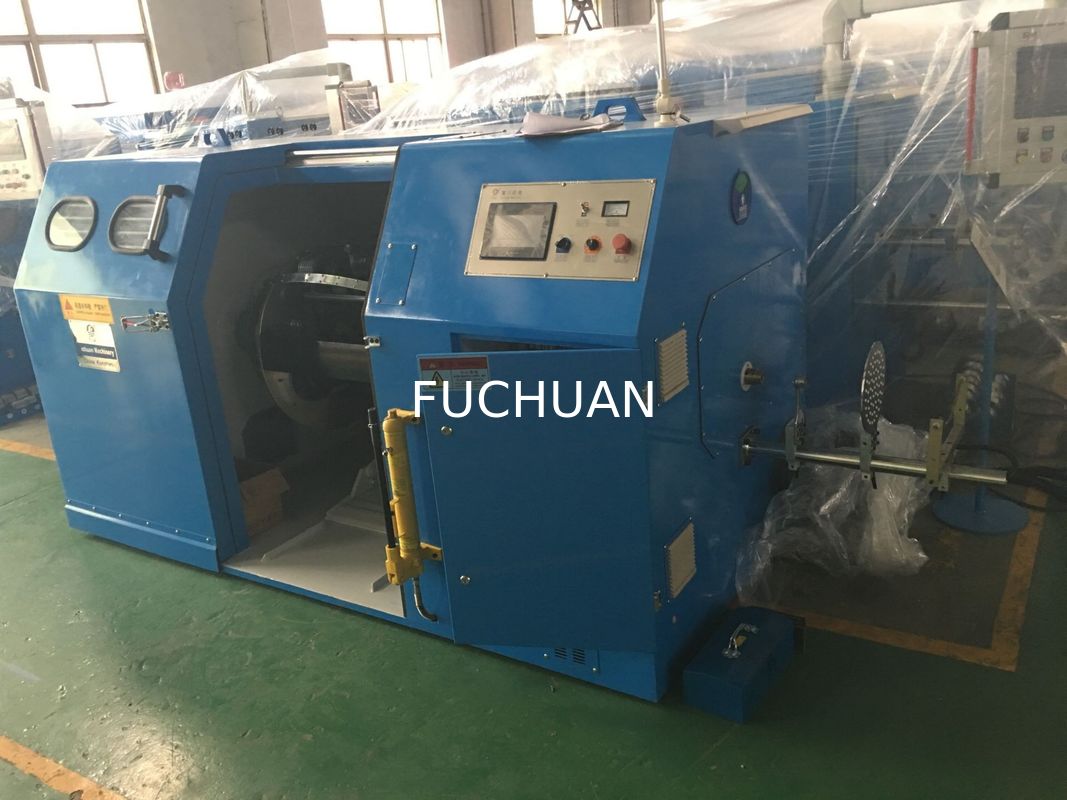

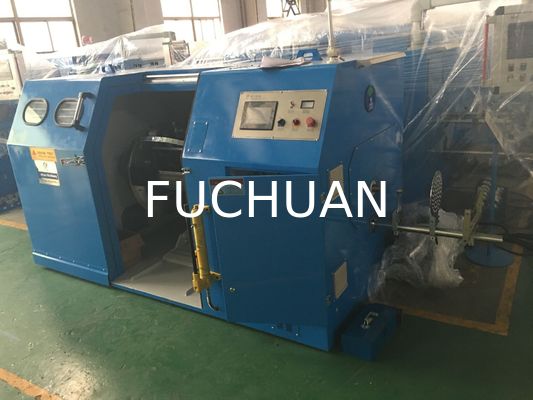

Fast Pvc Extrusion Machine , Eco Friendly Double Twist Bunching Machine

Color: Sky Blue Single Wire Dia(mm): Φ0.03~0.18
Stranding Section Area(mm²): 0.0049~0.3 Pitch(mm): 0.8-10.8(24 Classes)
Direction Of Lay: Optional For Right Or Left Take-up Bobbin(mm)  Outer Dia*bore*outer Width: Φ250*Φ30*185
High Light:

wire extrusion machine


wire stranding machine

Fast Pvc Extrusion Machine , Eco Friendly Double Twist Bunching Machine


Pvc Extrusion Machine Features :

  • High speed, good stability (the motor through the rigid coupling directly connected with the drive shaft)
  • Spindle andþ aluminum disc ¨rotation arm finish: after high-speed dynamic balancer processing; noise less than dB
  • Electrical control: user-friendly touch screen interface operation, control by the PLC programmer + inverter
  • Flyer Bow :þ Japan imported SK5, finished with heat treatment, the surface of hard chrome þ Imported fiber glass Transmission system: drive with synchronous belts , laying accurate, no internal lubrication position, no waste products effect by refueling and machine cleaning
  • Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet
  • Meter counting way: internal meter counter,

Pvc Extrusion Machine Parameters


Equipment Model FC-200B FC-250B FC-400B
Twisting Usage Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Single Wire Dia(mm) Φ0.016~0.08 Φ0.03~0.18 Φ0.05~0.32
Stranding Section Area(mm²) 0.0014~0.035 0.0049~0.3 0.0137~1.0

0.8-4.0(14 Classes) 0.8-10.8(24 Classes) 3.1~33.3(24Classes)
Direction of Lay optional for right or left
Take-up Bobbin(mm)
Outer dia*bore*outer width
Φ200*Φ31*135 Φ250*Φ30*185 Φ300*Φ30*185 Φ400*Φ56*300
Max Rotating Speed(rpm) 5000RPM(10000TPM) 4000RPM(8000TPM) 3500RPM7000TPM)
Main Motor Power 2.2KW 3.7KW 3.7KW
Inverter Power 2.2KW 3.7KW 3.7KW
Tension Control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic Powder Clutch 0.05kgf 0.3kgf 0.6kgf
Protection automatically brake/stop 1)wire inside and outside is broken; 2)the preset length is arrived
Brake Mode Electromagnetic brake
Traversing Method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation Mode Touch Screen Operation
Dimension 2000L*960W*1100H 2300L*1100W*1330H 2850L×1150W×1350H


Mechanical Performance

  • Body structure:

1.Material: low carbon steel welded together.

2.Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.

  • Bunching Entry part:

1.Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2.Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)

  • Spindle:

1.Material: 40Cr steel forging after quenching and tempering treatment.

2.Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3.Dynamic balance: Standard of G2.5 (0.03g of weight difference)

  • ¨Aluminum plate / ¨ Rotation Arm

1.Material:¨ ZL104 / ¨45# steel

2.Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3.Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)

  • Bow

1.Material: ¨ Japan imported SK5 ¨ Imported fiber glass

2.Shape: special appearance, reduce the wind resistance.

3.Weight tolerance : less than 0.03 grams per pair

  • Transmission part: with imported synchronous belt drive, laying length accurate
  • Wire entry wheel:

1.Material: # 45 steel finished with heat treatment HRC30-40.

2.Hard chrome plated on the surface, not easy to wear

  • Spindle housing:

1.Material: ductile iron QT42-10.

2.Processing: CNC machine tooling

3.Accuracy: one processing hole end molding, to ensure concentricity.

  • Spindle bearing lubrication system:

1.Lubrication method: butter lubrication

2.Butter Model: LGMT2

3.Sealing method: mechanical oil retaining ring, keep the machine clean inside

  • Take up:Tensile tension control through the magnetic clutch control thread tension, by the PLC program controller automatically adjust the tension, keep tension constant
  • Cable laying:Special two-way cable laying device, φ mm light rod bearing type,lay length and distance can be accurately adjusted
  • Spare parts sheet
No. Description Model Qty Remark
1 Spindle guide wheel (with Bearings) 1SET
2 Wire guide wheel (with Bearings) 1SET
3 Loops in Bow   3pcs
4 Split plate porcelain ring Φ6.8 3pcs
5 Stranded Die Client provide
6-9 Timing belt   1pcs
10 Spool Top sleeve According to customer’s reel drawings 1SET
11 SKF Butter LGMT2/1



12 Grease gun   1pcs
13 Tool With hex wrench, open wrench and etc 1SET
14 Operating instructions   1SET
15 Electrical Schematic   1SET
16 Inverter manual   1pcs
