Product Details:
|
| Name: | Pvc Wire Making Machine | Screw Dia: | 90 |
|---|---|---|---|
| Feed Wire Type: | Active Pay Off / Passive Pay Off | Extrusion Output: | 250kg/h |
| Capstan Power: | 10HP | Max Speed: | 200m/min |
| Highlight: | wire extrusion machine,wire stranding machine |
||

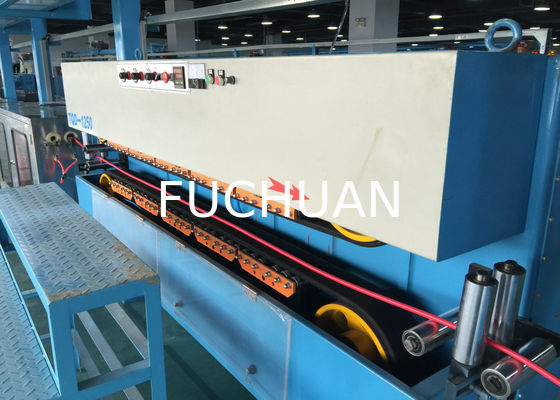

Automated Pvc Wire Making Machine / Silent Cable Wire Manufacturing Machines
Pvc Wire Making Machine Quick detail :
Pvc Wire Making Machine Applied for PU, PE, PVC and other plastic extrusion, mainly used in power supply, computer line, insulated wire sheath, construction lines, etc..
Pvc Wire Making Machine Specification:
| Automated Pvc Wire Making Machine / Silent Cable Wire Manufacturing Machines | |||||
| Applied to PVC, PU,PE and other plastic extrusion, mainly used in power supply, computer line, insulated wire sheath, construction lines, etc.. | |||||
| Model | 50 | 60 | 70 | 80 | 90-2 |
| Screw dia | φ50 | φ60 | φ70 | φ80 | φ90 |
| Screw L/D ratio | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 |
| Extrusion output(kg/h) | 70 | 100 | 150 | 200 | 250 |
| Main machine power(kw) | 15 | 18.5 | 30 | 37 | 45 |
| wire dia(mm) | Φ0.6~4.0 | Φ0.8~6.0 | Φ1.5-10 | Φ5.0-20 | Φ6.0-25 |
| wire feed type | active pay off or passive pay off | ||||
| max speed(m/min) | 400 | 400 | 300 | 200 | 200 |
| cooling water tank | folding type W or U type | ||||
| capstan dia | Φ410mm | Φ410mm | Φ510mm | Φ610mm | Φ610mm |
| capstan power | 5HP | 5HP | 7.5HP | 7.5HP | 10HP |
| wire accumulator rack | horizontal wire accumulator | ||||
| Take up machine | double shaft take up | shaftless take up | |||
| take up power | 3.7KW | 5.5KW | 5.5KW | 5.5KW speed reduction motor | |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
