Product Details:
|
| Material: | PVC | Direction: | Left To Right |
|---|---|---|---|
| CrossHead: | SOS316 | Pay-off: | 300-630mm Spool |
| Name: | Wire And Cable Extrusion Machine | ||
| High Light: | wire stranding machine,cable stranding machine |
||

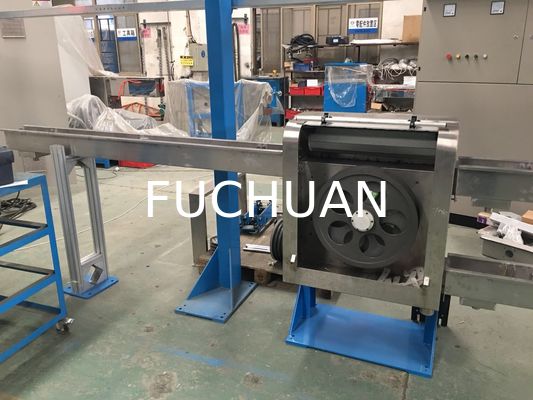

Low Noise Wire And Cable Extrusion Machine , Compact Wire Extrusion Equipment
Wire And Cable Extrusion Machine Quick detail :
applied to Ribbion Wire.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.
Device structure:drawing machine,annealing machine,extruder,take up machine,tester and other equipments.
Wire And Cable Extrusion Machine Specification:
|
No. |
Name/ Specification
|
Qty |
Unit |
Remark |
|
|
12H 500 Pay-off |
1 | Set | For 500 ABS spool |
|
|
Straighten Unit |
1 | Set | Fuchuan |
|
|
Ribbion wire Cross-head |
1 | Pcs | ≤30.0mm |
|
|
￠70 Extruder |
1 | Set | Fuchuan(with PVC screw) |
|
|
1.8MMovable Water Tank |
1 | Set | Fuchuan |
|
|
Dryer Hopper |
1 | Set | Fuchuan |
|
|
Diameter Gauge |
Set | SHANGHAI ON-LINE | |
|
|
4M Double Layer Water Tank |
1 | Set | Fuchuan |
|
|
200KG Capsten Device |
1 | Set | For flat wire only |
|
|
159 Meter Counter |
1 | Set | Fuchuan |
|
|
800/630 Double shaft take-up |
1 | Set | Fuchuan |
|
|
Suction Machine(For 70 extruder) |
1 | Set | TAIWAN SHIN |
|
|
Electrics |
1 | Set | Japan's RKC temperature controller;Siemens Motor, Japan's Omron relay and France Schneider Electrics, Germany's Siemens PLC + Taiwan Veiview touch-screen control, +Alarm screen |
Other information:
active pay off or passive pay off
Terms of payment:
FOB Shanghai / Ningbo
Payment terms:
30% down payment,70% before shipment
Delivery time:
45-60 days after receive the downpayment
Origin:
China
Minimum order:
1set
Package:
With container
