7pcs Nickel Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation

China 7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation supplier
7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation supplier 7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation supplier

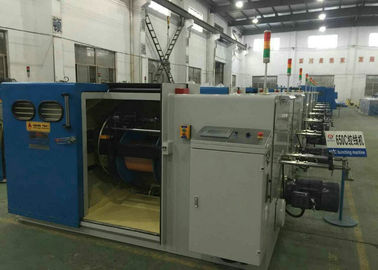

Large Image :  7pcs Nickel Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation

Product Details:

Place of Origin: China
Brand Name: Fuchuan
Certification: ISO9001 2008
Model Number: FC-650B-4

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simply water-prof packed
Delivery Time: 45-60days
Supply Ability: 50SETS/MONTH
Contact Now
Detailed Product Description
Color: Sky Blue Wire Processing Machine Fit For Bobbin: Diameter 630mm
Fit Copper Wire: 0.19mm-0.303mm Wire: Nickel Wire,
Operation Mode: Touch Screen Operation Tension Control: Constant Tension Control System

FUCHUAN 37pcs Nickel Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation





Quick Details:



Series for Model B normal wire high speed bunching machine and double twist bunching machine

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Characteristics:

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.Espiccally for 37pcs nickel wire



Specifications:


Equipment models FC-650B-4
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.19-φ0.303
Stranding section area (mm²) 0.35-6.0
Core wire single wire dia φ0.5-φ3.0
Core wire stranding outer dia φ1.0-φ6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed 2000(4000twist)
Main motor power 7.5KW
Inverter power 7.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable



Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

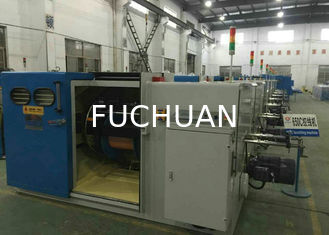

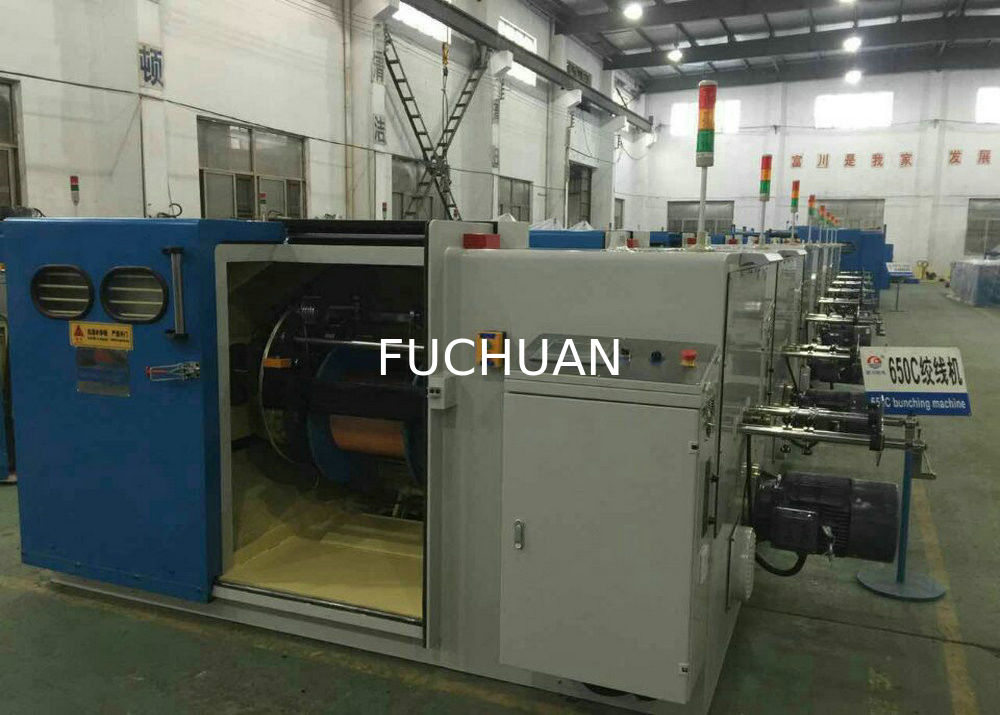

7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation
7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation
7pcs Nickel  Wire Twisting Machine / Bunching machine Diameter 630Mm Touch Screen Operation
