Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher

China Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher supplier
Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher supplier Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher supplier Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher supplier Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher supplier

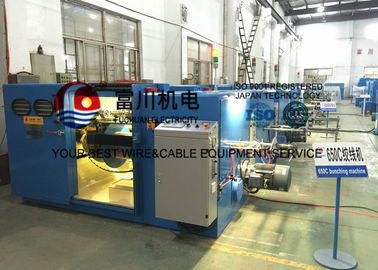

Large Image :  Cellphone Core Wire Double Twist Bunching Machine , Normal Double Twist Buncher

Product Details:

Place of Origin: China
Brand Name: Fuchuan
Certification: ISO9001 2008
Model Number: FC-650C-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: DISCUSSABLE
Packaging Details: WITH CONTAINER
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 500 SETS PER YEAR
Contact Now
Detailed Product Description
Motor Power: 11kw Color: Sky Blue
Magnetic Powder Clutch: 2.5 Kgf Brake Mode: Electromagnetic Brake
Operation Mode: Touch Screen Fit For Bobbin: DIAMETER 630mm
Single Wire Dia: 0.12mm TO 0.52mm Fitable Wire: Core Wire/bare Copper Wire,tinned Wire,silver Jacketed Wires

Fuchuan Double Twist Bunching Machine For Core Wire , Normal Wire Twister Machinery





Quick Detail:



1.1 FUCHUAN® Series for Model B normal wire high speed bunching machine and double twist bunching machine



1.2 Japan Technology, product in China



1.3 New Product, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.



Characteristics:



2.1. Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

2.2. Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

2.3. Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

2.4. Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

2.5. Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.



Specification:



Equipment models FC-500B FC-650B FC 650C-6 FC-800B
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) 0.08-0.45 0.15-1.04 0.12-0.52 0.38-1.70
Stranding section area (mm²) 0.05-2.5 0.35-6.0 0.30-4.0 1.0-16
Core wire single wire dia(mm) 0.5-1.5 0.5-3.0 0.5-2.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.5 1.0-6.0 1.0-4.0 2.0-8.0
Pitch(mm) 6.3-52.3(24classes) 11.6-100(34classes) 11.6-100(34classes) 23-147(20classes)
Direction of lay Optional for right or left
Outer dia*bore*outer width OD500 ID56 H375 OD630 ID56 H475

OD630 ID56 H475

OD630 ID127 H475

OD800 ID80 H600



Max rotating speed 3000rpm(6000twist) 2000rpm(4000twist) 2400rpm(4800twist) 1500rpm(3000twist)
Main motor power 5.5KW 7.5KW 11KW 15KW
Inverter power 5.5KW 7.5KW 11KW 15KW
Tension control method Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 2.5kgf 10kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 2680L 1250W 1500H 3300L 1550W 1800H 3300L 1550w 1800H 4600L 2000W 2000H





Other Information



FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
