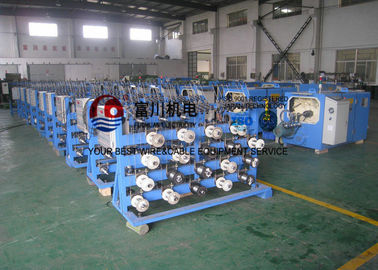

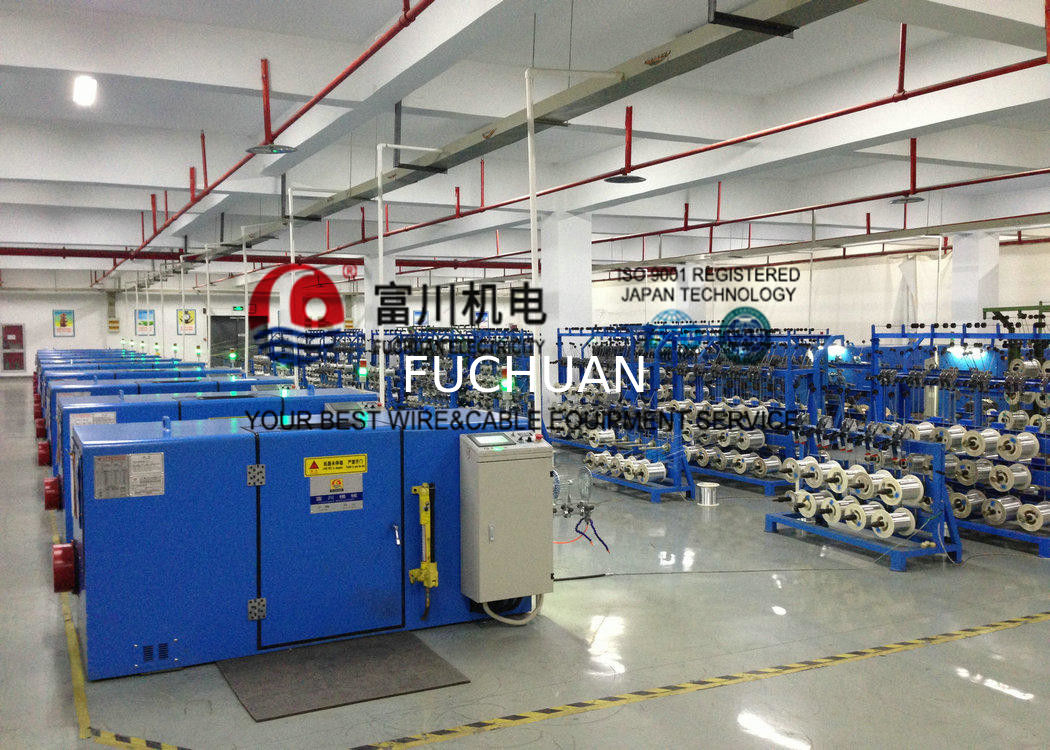

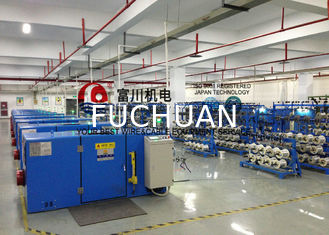

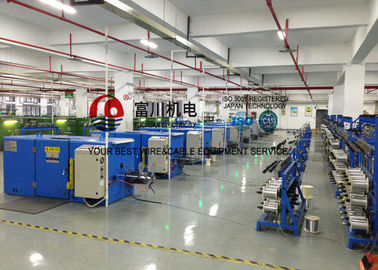

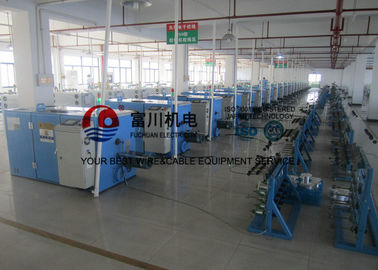

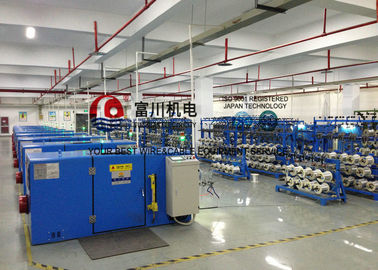

Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake

Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake
Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake

Large Image :  Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-400B-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD11330
Packaging Details: normal water proof packing or wooden packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500SET/YEAR

Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake

Description
Color: Sky Blue , Apple Green Fit For Bobbin: DIA 400mm
Applied For Wire: Copper Wire/silver Jacketed Wire/ Enamelled Wire Applied For Bobbin: Shaft Dia400mm
Brake Mode: Electromagnetic Brake Operation: Touch Screen Operation
Power: 3.7KW Motor Power: 3.7KW
High Light:

wire processing machine

,

wire processing equipment

Fuchuan Ultra Fine Cellphone Copper Wire Twisting Machine With Electromagnetic Brake





Quick Details:



Apply for the twisting of medical equipment, aerospace, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.



Characteristics:



a. With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire,

b. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

c. It can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area.


Specifications:



Equipment models

FC-400B-2

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.05-φ0.32

Stranding section area (mm²)

0.0137-1.0

Pitch(mm)

3.1-33.3(24zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ400*φ56*300

φ300*φ30*185

Max rotating speed

3500(7000twist)

Main motor power

3.7KW

Inverter power

3.7KW

Tension control method

Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

0.6kgf

Protection

Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units,winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

2850L*1150W*1350H



































































Other Information


FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container



Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake 0

Ultra Fine Cellphone Copper Wire Twister Machine With Electromagnetic Brake 1
