Alumium / Copper Wire Buncher Machine

China Alumium / Copper Wire Buncher Machine supplier
Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier Alumium / Copper Wire Buncher Machine supplier

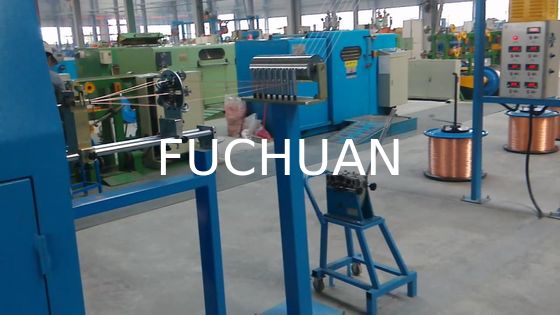

Large Image :  Alumium / Copper Wire Buncher Machine

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-1600B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD86330
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH
Contact Now
Detailed Product Description
Fit For Bobbin: Diameter1600mm Color: Sky Blue
Power: 30kw Brake Mode: Electromagnetic Brake
Magnetic Powder Clutch: 40kgf Control Type: Computer Control
Single Wire: 0.5mm-2.52mm Core Wire Dia: 3.0mm-10.0mm

400 Tube Silver Jacketed big copper Wire bunching Machine 30Kw Low Noise











Model FC-1600B large wire high speed bunching machine and double twist bunching machine





The technology of this machine is brought from Japan and put in production in JiangSu



Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.



Equipment models

FC-1600B

Twisting usage

It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.50-φ2.52

Stranding section area (mm²)

16.0-95

Core wire single wire dia

φ3.0-φ10.0

Core wire stranding outer dia

φ8.0-φ20.0

Pitch(mm)

80-350(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1600*φ80*1180



Max rotating speed

600(1200twist)

Main motor power

30KW

Inverter power

30KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

40kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

5000L*3000w*3000H



Delivery date: after receive the downpayment 45days



Payment terms: FOB Shanghai



payment type: T/T transfer or L/C, 30% of contract as downpayment, 70% before shipment



packing: customer's requirement packing
