Wire Bunching Process Wire Twist Machine

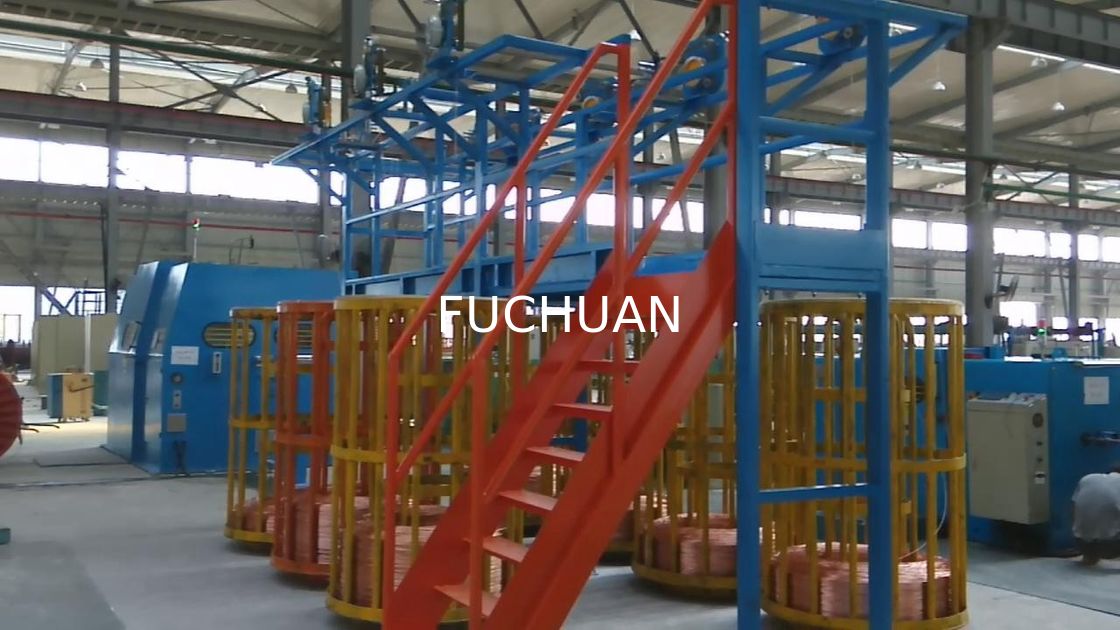

Large Image : Wire Bunching Process Wire Twist Machine

Product Details:

Place of Origin:	China JiangSu
Brand Name:	Fuchuan
Certification:	CE
Model Number:	FC-1000B-2

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	normal packing
Delivery Time:	45days
Payment Terms:	T/T
Supply Ability:	20SET/PER MONTH

Contact Now

Wire Bunching Process Wire Twist Machine

Description

Brake Mode:	Electromagnetic Brake	Color:	Sky Blue
Wire No:	Above 7pcs Of Copper Wire/	Fit For Bobbin:	Diameter1000mm
Power:	18.5kw	Single Wire:	0.5mm-2.14mm
Core Wire Single Wire:	3.0mm-8.0mm
Highlight:	cable processing equipment , cable manufacturing equipment

High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation

Model FC-1000B-2 large wire high speed bunching machine and double twist bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.

Equipment models	FC-1000B-2
Twisting usage	It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)	φ0.30-φ1.7
Stranding section area (mm²)	6.0-35.0
Core wire single wire dia	φ2.0-φ5.0
Core wire stranding outer dia	φ4.0-φ10
Pitch(mm)	35-200(12zones)
Direction of lay	Optional for right or left
Take up bobbin Outer diaboreouter width	φ1000φ80750
Max rotating speed	1000(2000twist)
Main motor power	18.5KW
Inverter power	18.5KW
Tension control method	Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	20kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	4000L2200W2100H

Wire Bunching Process Wire Twist Machine 0

Wire Bunching Process Wire Twist Machine 2
