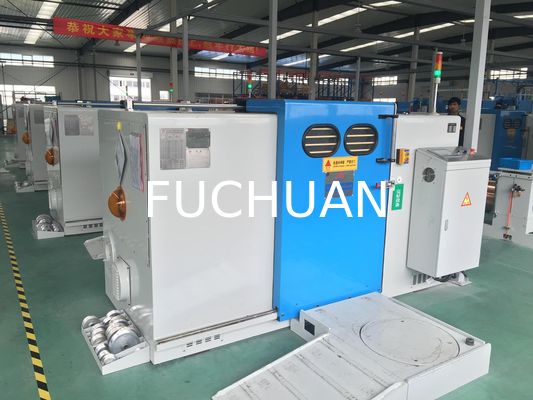

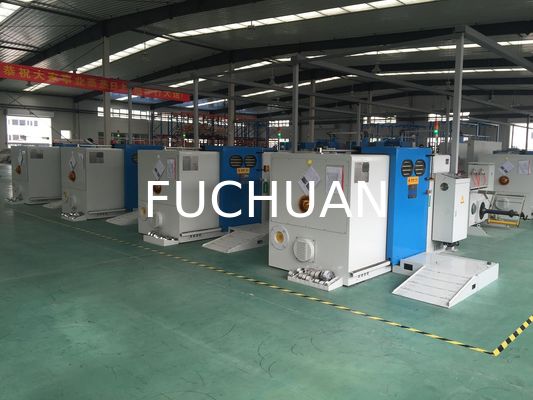

PLC Double Twist Bunching Machine

China PLC Double Twist Bunching Machine supplier
PLC Double Twist Bunching Machine supplier PLC Double Twist Bunching Machine supplier PLC Double Twist Bunching Machine supplier PLC Double Twist Bunching Machine supplier PLC Double Twist Bunching Machine supplier

Large Image :  PLC Double Twist Bunching Machine

Product Details:

Place of Origin: China
Brand Name: Fuchuan
Certification: ISO9001 2008
Model Number: FC-650B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: with container
Delivery Time: 45days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: Sky Blue Or Apple Green Take Up Bobbin: Diameter 630 Mm
Stranding Section Area: 0.35-6mm2 Wire: Bare Copper Wires, Tinned Wires, Silver Jacketed Wires And Enameled Wires,double Twisting For Core Wires.
Direction Of Lay: Free To Left Or Right Pitch: 11.6-100mm(34classes)
Machine Power: 7.5kw Operation Mode: Plc Touch Screen

Fuchuan Sky Blue Double Twist Bunching Machine with Core Wire Stranding Outer Dia 1 to 6mm


Quick Details:


New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.

Characteristics:



Japan Technology, product in China

1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.


Specifications:



Equipment models FC-500B FC-650B FC-650C FC-800B
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) 0.08-0.45 0.15-1.04 0.12-0.52 0.38-1.70
Stranding section area (mm²) 0.05-2.5 0.35-6.0 0.30-4.0 1.0-16
Core wire single wire dia(mm) 0.5-1.5 0.5-3.0 0.5-2.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.5 1.0-6.0 1.0-4.0 2.0-8.0
Pitch(mm) 6.3-52.3(24classes) 11.6-100(34classes) 11.6-100(34classes) 23-147(20classes)
Direction of lay Optional for right or left
Outer dia*bore*outer width OD500 ID56 H375 OD630 ID56 H475

OD630 ID56 H475

OD630 ID127 H475

OD800 ID80 H600



Max rotating speed 3000rpm(6000twist) 2000rpm(4000twist) 2400rpm(4800twist) 1500rpm(3000twist)
Main motor power 5.5KW 7.5KW 11KW 15KW
Inverter power 5.5KW 7.5KW 11KW 15KW
Tension control method Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 2.5kgf 10kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 2680L 1250W 1500H 3300L 1550W 1800H 3300L 1550w 1800H 4600L 2000W 2000H

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

PLC Double Twist Bunching Machine
PLC Double Twist Bunching Machine
PLC Double Twist Bunching Machine
