Core Wire Single Twist Machine

China Core Wire Single Twist Machine supplier
Core Wire Single Twist Machine supplier Core Wire Single Twist Machine supplier

Large Image :  Core Wire Single Twist Machine

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-800-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negociable
Packaging Details: wooden packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 26SETS/PER MONTH
Contact Now
Detailed Product Description
Color: Sky Blue/apple Green Fit For Bobbin: Dia800/1000/1250
Wire: PE/PVC Core Wire Or Copper Wire Fit For Wire: Dia0.6mm-3.0mm
Max Speed: 500rpm Direction Of Lay: Righ Or Left
Pitch: 30-200 Max Twist Diameter: 16mm
Control Type: PLC Computer Control

FC-800single twisting machine(computer change pitch)

1.Quick detail

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.

2.

      2. Characteristics



2.1 single core wire :¢1.0mm-¢3.0mm

2.2 Main machine max rotating speed:500rpm

2.3 Twisting pitch:30-200mm

2.4 Max twisting outside diameter: ¢15mm

2.5 Max hauling speed:500r/min

2.6 Main machine centre height: 800mm

2.7 Total power:11KW

2.8 Max speed of central bundling machine :2600m/min

3.Main components:

3.1 FC-800 main machine 1set

3.2 FC-800 centre bundling machine 1set

3.3 Wire concentration seat 1set

3.4 Electrical control cabinet 1set

3.5 FC-630 core wire pay off rack 7heads/set*1set



Equipment models FC-630 FC-800 FC-1000 FC-1250
Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.
Applicable dia(mm) φ0.60-φ3.0 φ0.60-φ3.0 φ1.0-φ6.0 φ1.0-φ6.0
Max twist outer dia φ12 φ16 φ25 φ30
Pitch(mm) 10-150 30-200 50-300 50-400
Direction of lay Optional for right or left
Take-up bobbin size φ630

φ800



φ1000



φ1250



Max rotating speed(rpm) 600 500 500 400
Traversing method Traverse is adopt crossbar-less reciprocating
Take up tension Pneumatic tension automatic regulate
Brake mode Disc brake
Bundling mode Central bundling or side bundling
Replace pitch mode Computer pitch or gear pitch

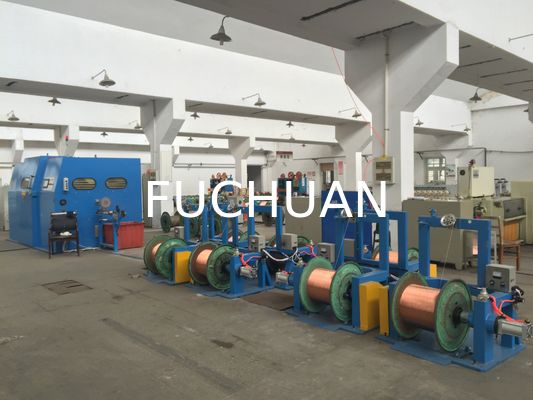

Core Wire Single Twist Machine
Core Wire Single Twist MachineCore Wire Single Twist Machine
