High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation

China High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation supplier
High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation supplier High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation supplier High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation supplier High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation supplier

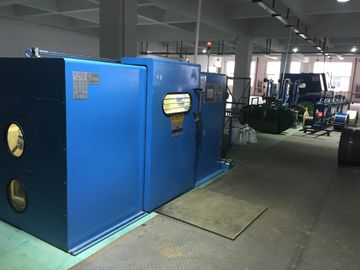

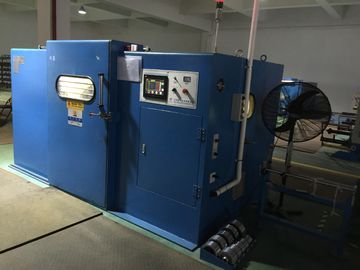

Large Image :  High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-1000B-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD49320
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH
Contact Now
Detailed Product Description
Brake Mode: Electromagnetic Brake Name: Copper Wire Manufacturing Machine
Wire No: Above 7pcs Of Copper Wire/ Fit For Bobbin: Diameter1000mm
Power: 18.5kw

 High Productivity Enamelled Wire Bunching Machine 18.5Kw With Touch Screen Operation







Model FC-1000B-1 large wire high speed bunching machine and double twist bunching machine



The technology of this machine is brought from Japan and put in production in JiangSu



Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.





Equipment models

FC-1000B-2

Twisting usage

It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.30-φ1.7

Stranding section area (mm²)

6.0-35.0

Core wire single wire dia

φ2.0-φ5.0

Core wire stranding outer dia

φ4.0-φ10

Pitch(mm)

35-200(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1000*φ80*750

Max rotating speed

1000(2000twist)

Main motor power

18.5KW

Inverter power

18.5KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

20kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

4000L*2200W*2100H
