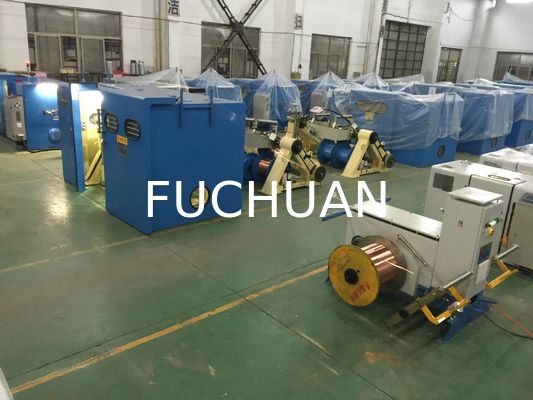

FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine
FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

Large Image :  FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

Product Details:
Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: FC-1+6(630F)+12-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simple packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C

FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine

Description
Fit For Wire: 19pcs Copper Wires φ0.16mm - φ0.64mm In One Time Fit For Bobbin: Diameter 800 Mm
Wire: 19pcs Of Copper Wire Tension Control Type: Magnetic Tension
Type: Computer Control Metal Twisting Machine Twisting Usage: 19pcs Of Copper Wire
High Light:

wire twister machine

,

metal twisting machine

FUCHUAN 19Pcs Flexible Wire Twisting Machine , Tinned Wire Bunching Machine





Quick Details:



Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time

It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.



Characteristics:



New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.

Equipment models

1+6+12(630bobbin)

FC-1+6+12(800bobbin)

Twisting usage

It is applicable to bunching 19pcs copper wires in one time

Single wire dia(mm)

φ0.16-φ0.64

Stranding section area (mm²)

2.5-6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Pay off bobbin size

φ630*φ127*475

φ800*φ127*600

Max rotating speed

2000(4000twist)

1200(2400twist)

Pay off type

Mechanical friction

Magnetic tension

Pay off machine power

5.5KW

7.5KW

Take up bobbin size

φ630*φ125*475

φ630*φ125*475













Total power

21KW

35KW

Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5.0kgf

10.0kgf

Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

10000L*2500W*1650H

10000L*2500W*1650H



Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
