0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher

Good quality Wire Twisting Machine for sales
Good quality Wire Twisting Machine for sales
The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

I'm Online Chat Now

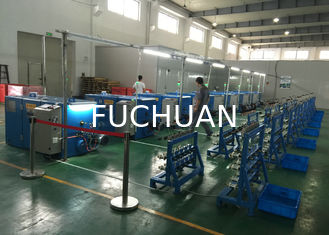

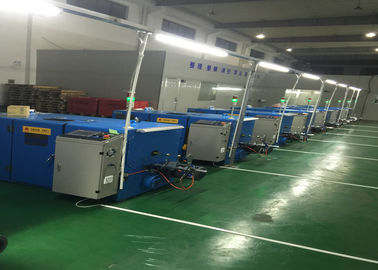

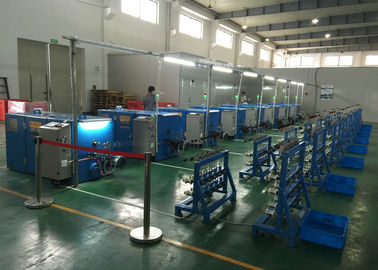

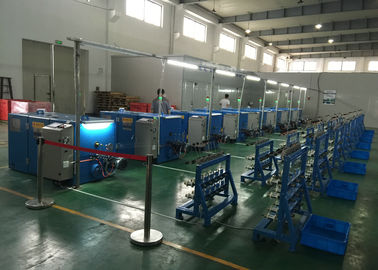

0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher

China 0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher supplier
0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher supplier 0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher supplier 0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher supplier 0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher supplier

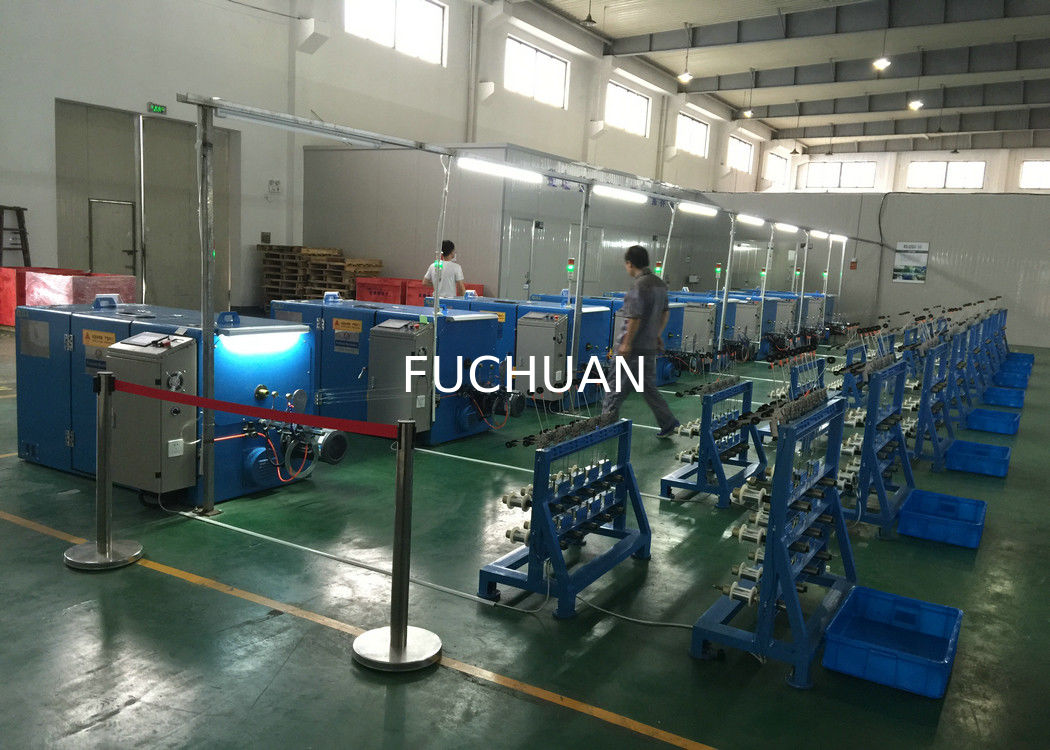

Large Image :  0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-250B-1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD11220
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH
Contact Now
Detailed Product Description
Color: Sky Blue Fit For Bobbin: Diameter 300/250mm
Applied For Wire: Copper Wire/silver Jacketed Wire/enamelled Wire Applied For Bobbin: Diameter 300mm Bobbin
Fit For Wire: 0.03mm-0.18mm Power: 3.7kw

0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher



Quick Details:



It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.



Characteristics:



With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Specifications:



Equipment models

FC-250B-1

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.05-φ0.28

Stranding section area (mm²)

0.0137-0.45

Pitch(mm)

0.8-10.8(24zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ300*φ30*185

φ250*φ30*185

Max rotating speed

3500(7000twist)

Main motor power

3.7KW

Inverter power

3.7KW

Tension control method

Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

0.6kgf

Protection

Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units,winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

2300L*1100w*1330H



































































Other Information


FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher
0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher0.03mm Copper Wire Twisting Machine 24 Zones Double Twist Buncher
