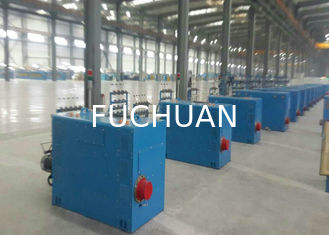

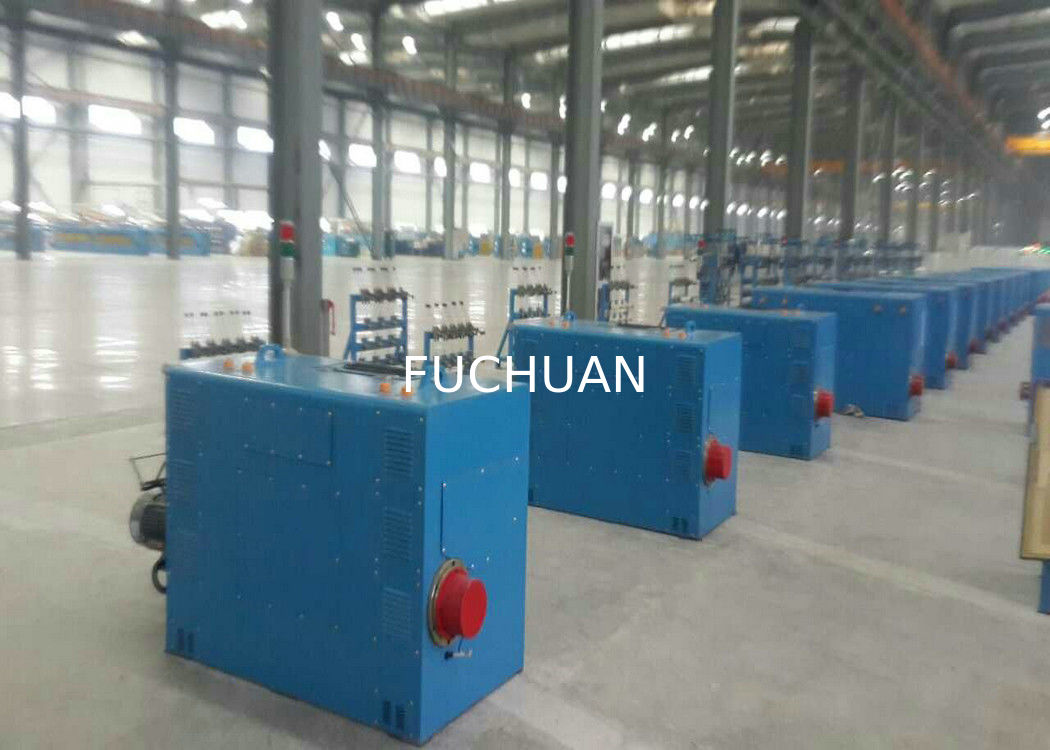

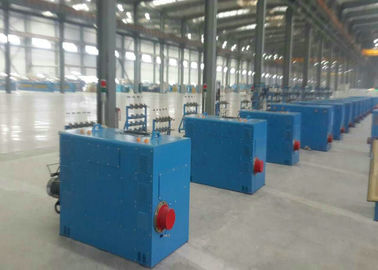

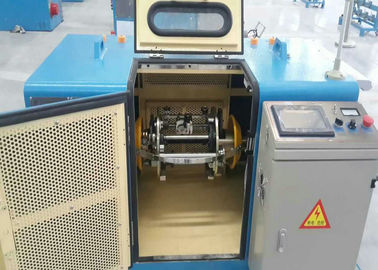

PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm

PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm
PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm

Large Image :  PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-300B-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD11320
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm

Description
Color: Sky Blue Fit For Bobbin: Diameter 300/250mm
Applied For Wire: Copper Wire/silver Jacketed Wire/enamelled Wire Applied For Bobbin: Diameter 300mm Bobbin
Tension Control Method: Touch Screen+PLC+magnetic Powder Clutch Fit For Single Wire: 0.05mm-0.28mm
High Light:

wire processing machine

,

cable manufacturing machine

PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm





Quick Details:



It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.



Characteristics:



With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Specifications:



Equipment models

FC-300B-3

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.05-φ0.28

Stranding section area (mm²)

0.0137-0.45

Pitch(mm)

0.8-10.8(24zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ300*φ30*185

φ250*φ30*185

Max rotating speed

3500(7000twist)

Main motor power

3.7KW

Inverter power

3.7KW

Tension control method

Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

0.6kgf

Protection

Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units,winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

2300L*1100w*1330H



































































PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm 0PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm 1PLC Control Copper Wire Twisting Machine 300mm Bobbin 2300×1100×1330 mm 2
