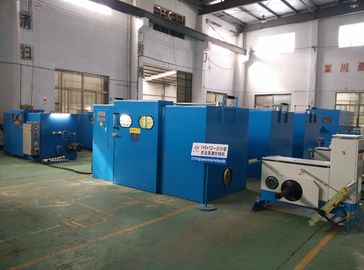

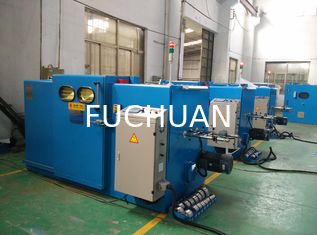

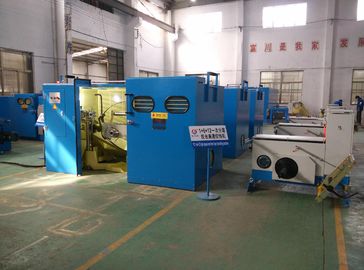

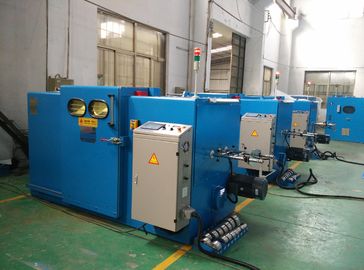

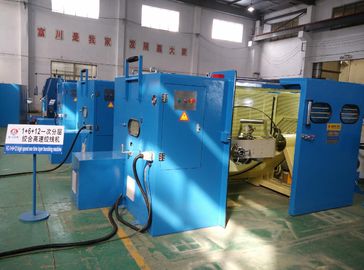

PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off

PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off
PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off

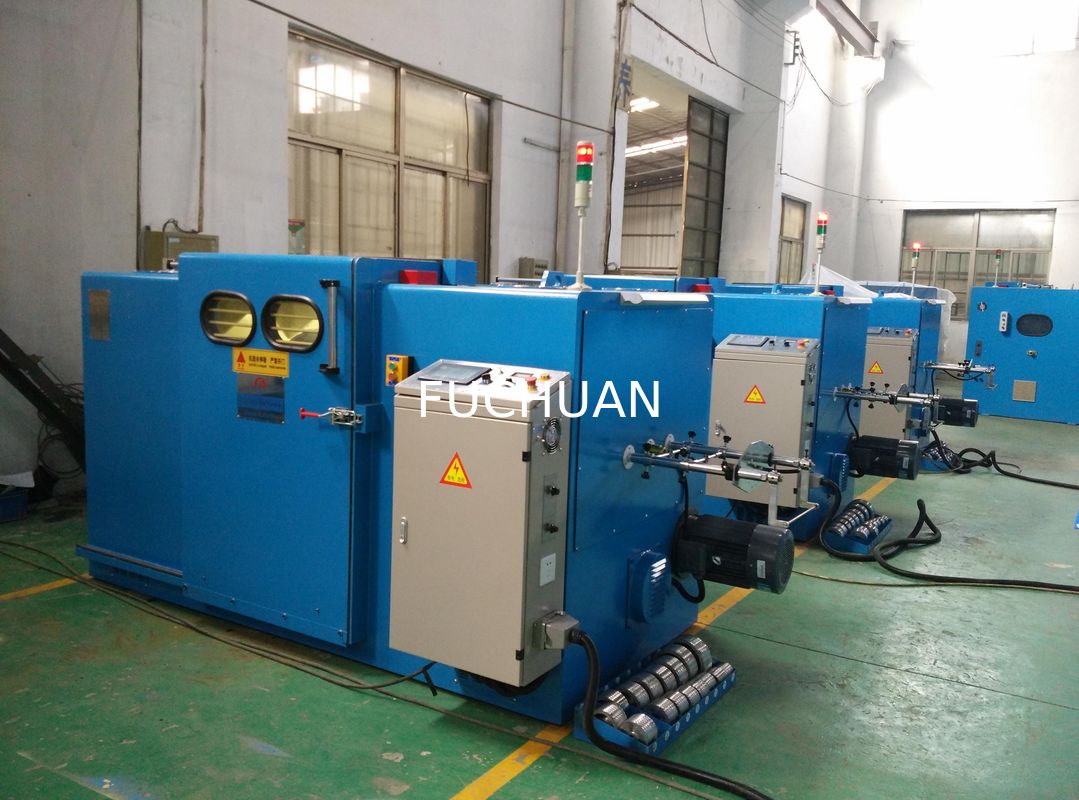

Large Image :  PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off

Product Details:
Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: FC-1+6(630F)+12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotable
Packaging Details: simple packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C

PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off

Description
Fit For Wire: 19pcs Copper Wires φ0.16mm - φ0.64mm In One Time Fit For Bobbin: Diameter 630 Or 250mm
Wire: 19pcs Of Copper Wire Mainly For Wire: BV,BVR,bare Copper Wire
Color: Sky Blue Or Apple Green Pay Off Type: Magnetic Tension
High Light:

wire twister machine

,

automatic wire twisting machine

Fuchuan PLC Control Bare Copper Wire Twisting Machine / Equipment Magnetic Tension Pay Off





Quick Details:



Series for 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time



It is the latest developed machine. This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)low power, small floor place, low noise and other merits.



Characteristics:



New arrival, instead of 200 tube bunching machine, have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),energy-saving, small size, low noise, etc.



Specifications:



Equipment models

1+6+12(200bobbin)

FC-1+6+12(500bobbin)

Twisting usage

It is applicable to bunching 19pcs copper wires in one time

Single wire dia(mm)

φ0.16-φ0.64

Stranding section area (mm²)

0.38-6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Pay off bobbin size

8inch,9inch

φ500*φ125*475

Max rotating speed

2000(4000twist)

2600(5200twist)

Pay off type

Mechanical friction

Magnetic tension

Pay off machine power

5.5KW

7.5KW

Take up bobbin size

φ630*φ125*475

φ500*φ125*375

Pay off Inverter power

7.5KW

7.5KW

Main motor power

7.5KW

7.5KW

Take up inverter power

7.5KW

7.5KW

Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5.0kgf

5.0kgf

Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

10000L*2500W*1650H

10000L*2500W*1650H



Other Information


FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container


PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off 0PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off 1PLC Control Bare Copper Wire Twisting Machine Magnetic Tension Pay Off 2
