3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin

Good quality Wire Twisting Machine for sales
Good quality Wire Twisting Machine for sales
The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

I'm Online Chat Now

3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin

China 3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin supplier
3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin supplier 3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin supplier 3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin supplier 3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin supplier

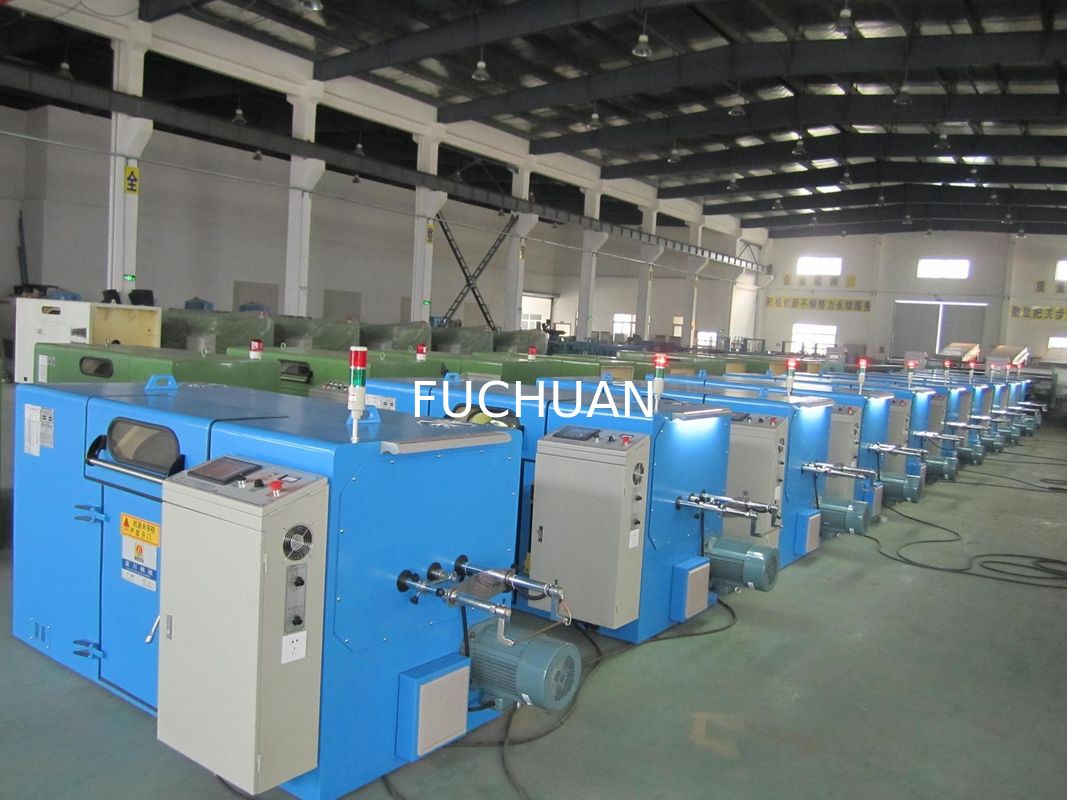

Large Image :  3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin

Product Details:

Place of Origin: China
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-500B-1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD16000
Packaging Details: customary packing
Delivery Time: 8weeks
Payment Terms: T/T
Supply Ability: 50sets per year
Contact Now
Detailed Product Description
Fir Wire: Copper Wire 0.08-0.45 Fir Wire: Copper Wire 0.08-0.45
Wire: Bare Copper Wire,tinned Wires,silver Jacketed Wire Also Wire: Enamelled Wire,double Twist
Also Wire: Enamelled Wire,double Twist Motor Power: 5.5kw
Motor Power: 5.5kw Motor Power: 5.5kw
Max Speed: 3000rpm Max Speed: 3000rpm
Operation Mode: Touch Screen Operation

3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin







Equipment models: FC-500B



Twisting usage: It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.

1). Single wire diameter: 0.08-0.45mm

2). Stranding section area:0.05-2.5mm2

3). Core wire single wire diameter: 0.5-1.5mm

4). Core wire stranding outer diameter:1.0-3.0mm

5). Pitch : 6.3-52.3(24sections)

6). Take up bobbin size: diameter 500

7).  Main motor power:5.5KW

8).  Inverter power: 5.5KW

9).  Tension control method: touch screen+PLC+magnetic powder clutch,it may ensure the constant

       tension from empty bobbin to full bobbin.

10)  Protection: Machine will automatically brake when wire inside and outside is broken,the machine will                automatically stop when the preset length is arrived.



3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin3000rpm Double Twist Bunching Machine Diameter 500 Take Up Bobbin
