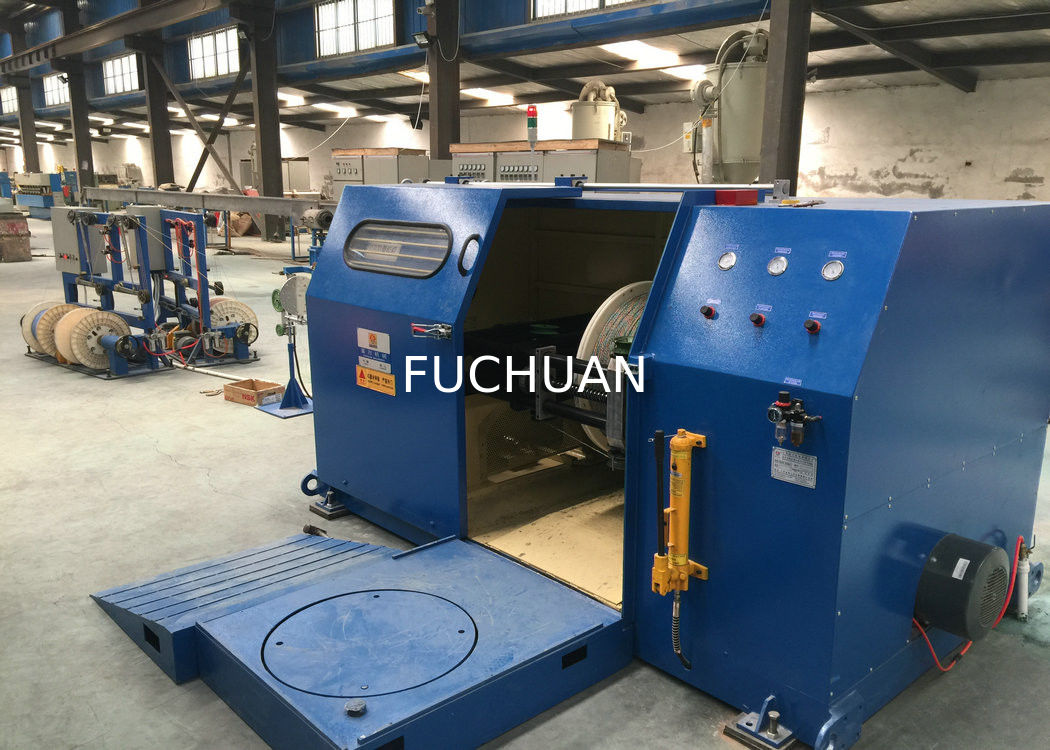

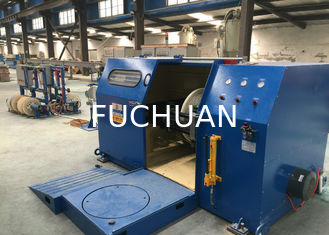

Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed

Good quality Wire Twisting Machine for sales
Good quality Wire Twisting Machine for sales
The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

I'm Online Chat Now

Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed

China Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed supplier
Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed supplier Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed supplier Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed supplier

Large Image :  Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed

Product Details:

Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-1000-1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: discussable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500SET/PER YEAR
Contact Now
Detailed Product Description
Color: Sky Blue/apple Green Fit For Bobbin: Diameter1000mm
Wire: PE/PVC Core Wire Or Copper Wire Fit For Wire: Dia1.0mm-6.0mm
Max Speed: 500rpm Direction Of Lay: Righ Or Left
Pitch: 50-300 Max Twist Diameter: 25mm
Type: Gear Control Or Computer Control

Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed





Quick detail :



Series for 1000 gear type single twist (cable laying) machine



It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central  bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.



Specification:



Equipment models FC-1000
Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.
Applicable dia(mm) φ1.0-φ6.0
Max twist outer dia φ25
Pitch(mm) 50-300
Direction of lay Optional for right or left
Take-up bobbin size φ1000
Max rotating speed(rpm) 500
Traversing method Traverse is adopt crossbar-less reciprocating
Take up tension Pneumatic tension automatic regulate
Brake mode Disc brake
Bundling mode Central bundling or side bundling
Replace pitch mode gear pitch







































Other information:



active pay off or passive pay off



Terms of payment:



FOB Shanghai / Ningbo



Payment terms:



30% down payment,70% before shipment



Delivery time:



45days after receive the downpayment



Origin:



China



Minimum order:



1set



Package:



With container



Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed

Fuchuan Copper Wire Frame Single Twist Machine with Cable Laying 500Rpm Max Speed
