Product Details:
|
| Applied For Wire: | Copper Wire | Color: | Sky Blue |
|---|---|---|---|
| Applied: | 0.08-0.45mm | Conductor: | Ultra Fine Conductor/ Enamelled Wire |
| Fit For Bobbin: | Diameter 500mm | Power: | 7.5kw |
| High Light: | wire processing machine,wire processing equipment |
||

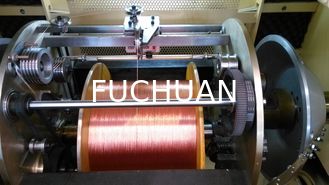

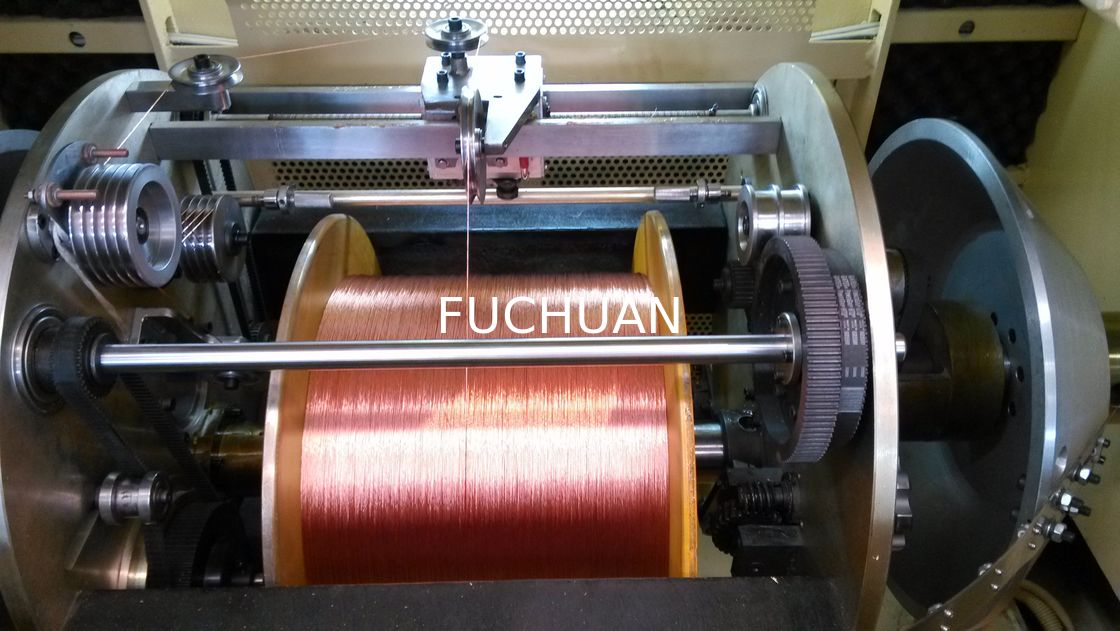

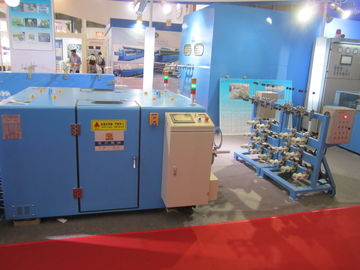

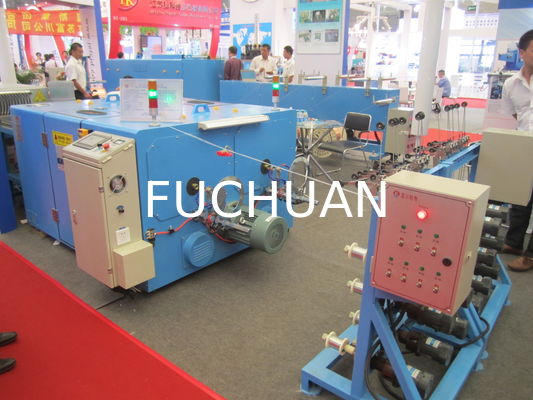

Double Head Copper Wire Twisting Machine 1.2Kgf With Adjustable Breadth
Series for high speed twins bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: The twins bunching machine has been developed to produce very accurate strands with very small sections for the electronic industry. It can produce simultaneously two different strand sections, on equal or different reels, at the same rotation speed. Two rotate shafts drive by one motor, thus achieve the environmental goal and low power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
|
Model |
FC-500D |
|
Twisting usage |
It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires). |
|
Single wire dia(mm) |
φ0.08-φ0.45 |
|
Stranding section area (mm²) |
0.05-2.0 |
|
Pitch(mm) |
6.3-52.3(24zones) |
|
Direction of lay |
Optional for right or left |
|
Take up bobbin size(mm) |
Φ500*φ56*375 Φ500*φ127*375 |
|
Max rotating speed |
3000(6000twist) |
|
Power |
7.5KW |
|
Tension control method |
Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
|
Magnetic powder clutch |
1.2kgf |
|
Protection |
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
|
Traversing method |
Rolling ring drive units, winding pitch and breadth are adjustable |
|
Dimension(mm) |
2800L*2250w*1500H |
