5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch

China 5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier
5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier 5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier 5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier 5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier 5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch supplier

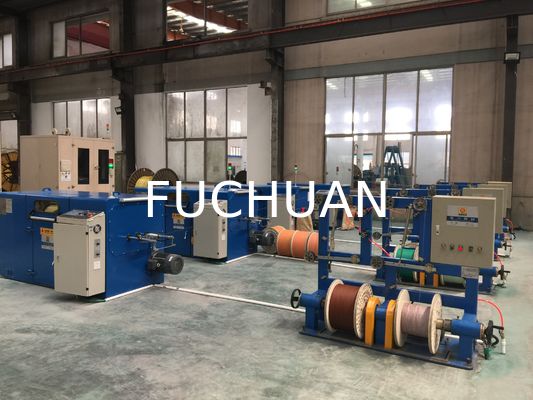

Large Image :  5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch

Product Details:

Place of Origin: China
Brand Name: Fuchuan
Certification: ISO9001 2008
Model Number: FC-650B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD19330
Packaging Details: simply packed
Delivery Time: 45days
Supply Ability: 50SETS/MONTH
Contact Now
Detailed Product Description
Color: Red Fit For Bobbin: Diameter 500mm
Fit Copper Wire: 0.15mm-1.04mm Wire: Core Wire/bare Copper Wire/silver Jacketed Wire/enamelled Wire

5.0Kgf Double Twister Wire Bunching Machine With Adjustable Winding Pitch





Series for Model B normal wire high speed bunching machine and double twist bunching machine



The technology of this machine is brought from Japan and put in production in JiangSu



Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Equipment models

FC-650B

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.15-1.04

Stranding section area (mm²)

0.35-6.0

Core wire single wire dia

φ0.5-φ3.0

Core wire stranding outer dia

φ1.0-φ6.0

Pitch(mm)

11.6-100(34zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ630*φ56*475

Max rotating speed

2000(4000twist)

Main motor power

7.5KW

Inverter power

7.5KW

Tension control method

Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

5.0kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable
