Description
Name: Wire Bunching Machine Single Wire Dia(mm): Φ0.04~2.62
Stranding Section Area(mm²): 0.01~50.0mm2 Core Wire Single Wire Dia(mm): Φ0.5~6.0
Core Wire Stranding Outer Dia(mm): Φ1.0~12.0 Application: Bare Copper Wires , Tinned Wires, Insulated Core Wire
High Light:

Double twisting Wire bunching Machine

,

High speed Wire bunching Machine

,

Copper Wire Cable Bunching Machine

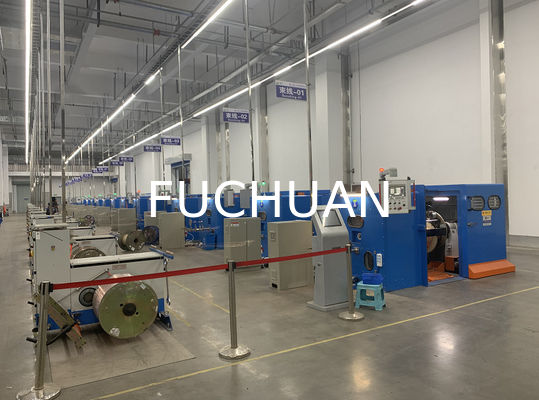

Industrial Large Wire Bunching Machine For Bare Copper Wires , Tinned Wires



Wire Bunching Machine Characteristics:



New developed, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.


Wire Bunching Machine Merits:



  • Flyer Bow :þ Japan imported SK5, finished with heat treatment, the surface of hard chrome þ Imported fiber glass Transmission system: drive with synchronous belts , laying accurate, no internal lubrication position, no waste products effect by refueling and machine cleaning
  • Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet
  • Meter counting way: internal meter counter,

Main performance parameters

  • Application: cores twister and conductor stranding ,such as bare wire, tinned wire, nickel wire ,silver plated wire,enameled wire,copper clad aluminum,, alloy wire and etc. 1 + 6 can replace twisting with stranding
Equipment Model FC-1000B FC-1250B FC-1600B
Twisting Usage Apply for the twisting of above seven pcs of bare copper wires, tinned wires, alloy aluminium wires etc of BVR and RVV),double twisting for core wires.
Single Wire Dia(mm) Φ0.3~2.14 Φ0.5~2.52 Φ0.5~2.52
Stranding Section Area(mm²) 6.0~25.0 10.0~35.0 10.0~50.0
Core wire single wire dia(mm) Φ2.0~4.0 Φ3.0~6.0 Φ3.0~6.0
Core wire stranding outer dia(mm) Φ4.0~10.0 Φ6.0~12.0 Φ6.0~15.0
Pitch(mm) 35-149(20) 41-155(20) 60-260(20)
Direction of Lay optional for right or left
Take-up Bobbin(mm)
Outer dia*bore*outer width
Φ1000*Φ80*750 Φ1250*Φ80*950 Φ1600*Φ80*1180
Max Rotating Speed(rpm) 1000(2000) 800(1600 ) 600(1200)
Main motor power 18.5KW 22KW 30KW
Inverter power 18.5KW 22KW 30KW
Tension control method Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 20kgf 20kgf 40kgf
Protection automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Lifting Mode Electric traverse rod control lifting
Operation mode Touch Screen Operation
Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H



Mechanical Performance

  • Body structure:

1.Material: low carbon steel welded together.

2.Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.

  • Bunching Entry part:

1.Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2.Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)

  • Spindle:

1.Material: 40Cr steel forging after quenching and tempering treatment.

2.Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3.Dynamic balance: Standard of G2.5 (0.03g of weight difference)

  • ¨Aluminum plate / ¨ Rotation Arm

1.Material:¨ ZL104 / ¨45# steel

2.Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3.Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)

  • Bow

1.Material: ¨ Japan imported SK5 ¨ Imported fiber glass

2.Shape: special appearance, reduce the wind resistance.

3.Weight tolerance : less than 0.03 grams per pair

  • Transmission part: with imported synchronous belt drive, laying length accurate
  • Wire entry wheel:

1.Material: # 45 steel finished with heat treatment HRC30-40.

2.Hard chrome plated on the surface, not easy to wear

  • Spindle housing:

1.Material: ductile iron QT42-10.

2.Processing: CNC machine tooling

3.Accuracy: one processing hole end molding, to ensure concentricity.

  • Spindle bearing lubrication system:

1.Lubrication method: butter lubrication

2.Butter Model: LGMT2

3.Sealing method: mechanical oil retaining ring, keep the machine clean insid



Description Model Origin
1.Host Motor   SIEMENS
2.Inverter   INOVANCE
3.PLC Programmer   INOVANCE
4.PLC Expander   INOVANCE
5.Touch Screen   Weinview
6.Electromagnetic Brake   WREZUN
7.Magnetic Clutch   CHAIN TAIL
8.Spindle Bearings 1SET SWEDEN SKF
Other Bearings 1SET JAPAN NSK
9.Timing Belt 1SET US GATES
10.Cable Laying Device   SHANXI Tian Xiang
11.¨Manual hydraulic pump   TAIWAN SHUNXIN
¨Electrical hydraulic pump
¨Electrical screw rod+Motor
12.Tension Controller   TAIWAN
13.Bow 1SET ¨Japan SK5 /¨Fiber glass
14.Body 1SET Self-processing
15.Spindle 2pcs Self-processing
16.Aluminum Plate 2pcs Self-processing
17.Timing Pulley 1SET SHANGHAI FENGKE
18.Bearing Housings 1SET Self-processing
19.Disc 2pcs Self-processing
20.Transmission Shaft 1pcs Subcontracting
21.Leading Wheel 1SET Self-processing with hard chrome plating
22.Wire guide wheel 6pcs Self-processing with hard chrome plating



  • Spare parts sheet
No. Description Model Qty Remark
1 Spindle guide wheel (with Bearings) 1SET
2 Wire guide wheel (with Bearings) 1SET
3 Loops in Bow   3pcs
4 Split plate porcelain ring Φ6.8 3pcs
5 Stranded Die Client provide
6-9 Timing belt   1pcs
10 Spool Top sleeve According to customer’s reel drawings 1SET
11 SKF Butter LGMT2/1

1

Bottle

1KG
12 Grease gun   1pcs
13 Tool With hex wrench, open wrench and etc 1SET
14 Operating instructions   1SET
15 Electrical Schematic   1SET
16 Inverter manual   1pcs
