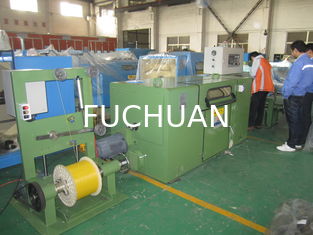

Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine

Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine
Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine

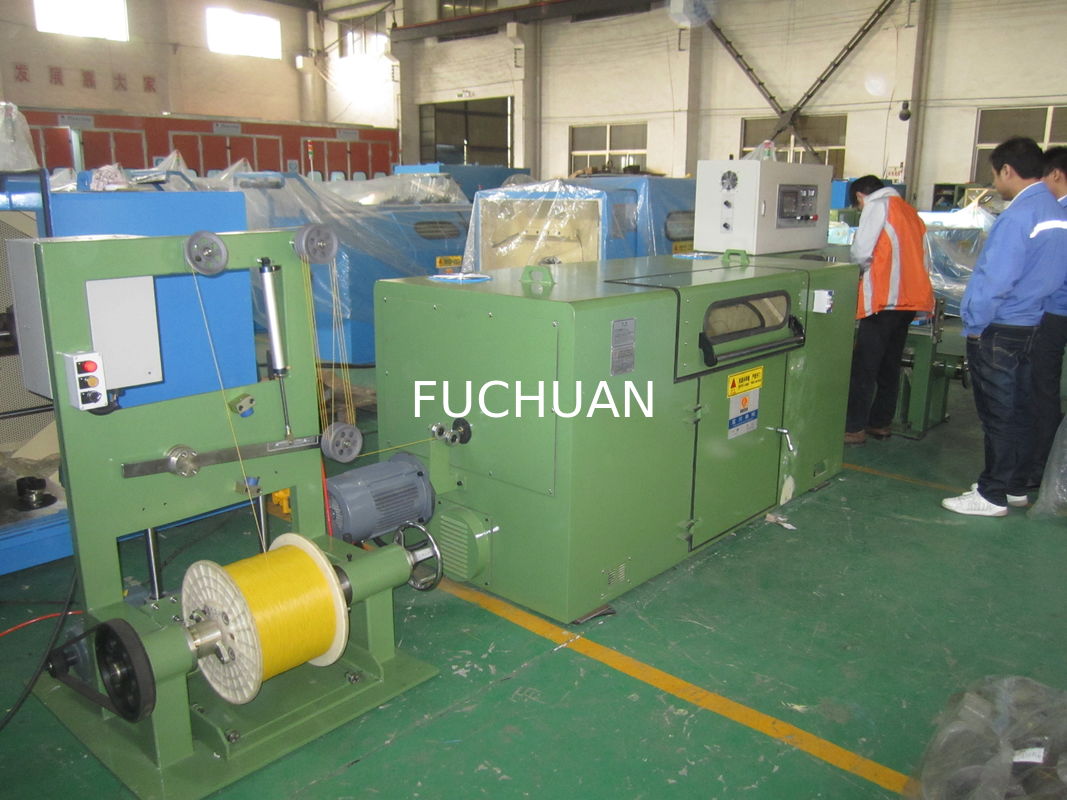

Large Image :  Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine

Product Details:
Place of Origin: China
Brand Name: Fuchuan
Certification: CE
Model Number: FC-650B-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simply water-prof packed
Delivery Time: 45-60days
Supply Ability: 50SETS/MONTH

Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine

Description
Name: Sky Blue Wire Take Up Machine Fit For Bobbin: Diameter 630mm
Fit Copper Wire: 0.19mm-0.303mm Adantage: High Performance
Operation Mode: Touch Screen Operation Tension Control: Constant Tension Control System
High Light:

wire twister machine

,

automatic wire twisting machine

Sky Blue Wire Take Up Machine / High Performance Wire Twist Machine



Wire Take Up Machine Quick Details:



Wire Take Up Machine  Series for Model B normal wire high speed bunching machine and double twist bunching machine

With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Wire Take Up Machine  Characteristics:



Wire Take Up Machine is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.Espiccally for 37pcs nickel wire



Wire Take Up Machine Specifications:


Equipment models FC-650B-4 Wire Take Up Machine
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.19-φ0.303
Stranding section area (mm²) 0.35-6.0
Core wire single wire dia φ0.5-φ3.0
Core wire stranding outer dia φ1.0-φ6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed 2000(4000twist)
Main motor power 7.5KW
Inverter power 7.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable



Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
