19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64

19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64
19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64 19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64

Large Image :  19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64

Product Details:
Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: FC 1+6(180F)+12/500B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simple water-prof packing
Delivery Time: 45-60 DAYS
Payment Terms: T/T, L/C
Supply Ability: 500 set per year

19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64

Description
Wire: 19pcs Nickel Wires φ0.19mm - φ0.303mm One Time Bunching Bobbin: DIAMETER 160 Or 500 Mm
Wire: 19 Pcs Copper Wire Max Speed: 2600RPM(5200TPM)
Pay Off Motor Power: 5.5kw Pay Off Bobbin: DIA 1600 Mm
Take Up Motor Power: 2.5kw Motor
High Light:

cable twisting machine

,

wire twist machine

,

19 Pcs Nickel Wire Bunching Machine

FUCHUAN 19 Pcs Nickel Wire Bunching Machine / Twisting Machine 0.19~0.303





Quick Details:



Fuchuan FC-1+6+12 bunching machine 19pcs nickel wires φ0.19mm - φ0.303mm in one time



Characteristics:



(1.1). It is the latest developed machine.

(1.2). This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than

 tube machine for the 1+6+12 conductors normal bunching)

(1.3). Low power, small floor place, low noise and other merits.



Specifications:



Equipment models 1+6+12(160bobbin) FC 1+6+12(250bobbin)
Twisting usage It is applicable to bunching 19pcs copper wires in one time
Single wire dia(mm) φ0.19-φ0.303
Stranding section area (mm²) 0.38-1.5mm²
Pitch(mm) 6.3-52.3(24zones)
Direction of lay Optional for right or left
Pay off bobbin size DIN 160 DIN 250
Max rotating speed 2600(4000twist) 2400(4000twist)
Pay off type Mechanical friction Magnetic tension
Pay off machine power 5.5KW 7.5KW
Take up bobbin size φ500*φ127*375 φ500*φ127*375
Pay off Inverter power 11KW 11KW
Main motor power 11KW 11KW
Take up inverter power 11KW 11KW
Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch 1.2kgf 1.2kgf
Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 10000L*2500W*1650H 10000L*2500W*1650H





Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

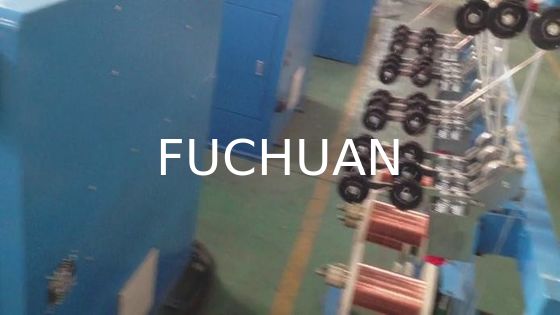

19 Pcs Nickel Wire Bunching Machine / Cable Twisting Machine 0.41 / 0.52 / 0.64 0
