Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed

Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed
Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed

Large Image :  Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-XB1000-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 26SET/PER MONTH

Computer Wire cable twisting Machine Single Twist Cable Laying 800Rpm Max Speed

Description
Color: Sky Blue Fit For Bobbin: Diameter 630mm
Applied For Wire: Core Wire Twist Type: Cantilever Type
Max Outer Dia: 20mm Max Speed: 800rpm
Take Up Bobbin: Dia1000mm
High Light:

cable braiding machine

,

copper wire manufacturing machine

FC-1000single twisting machine(computer change pitch)



  1. Equipment main parameters:

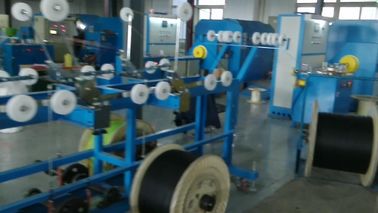

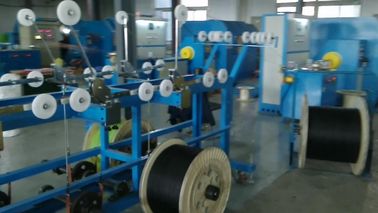

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.



2.   2. Detail feature of FC-1000 single twisting machine



2.1  single core wire :¢1.0mm-¢3.0mm

2.2  Main machine max rotating speed:500rpm

2.3  Twisting pitch:30-200mm

2.4  Max twisting outside diameter: ¢15mm

2.5  Max hauling speed:500r/min

2.6  Main machine centre height: 800mm

2.7  Total power:11KW

2.8  Max speed of central bundling machine :2600m/min



3. Main components:



3.1  FC-1000 main machine 1set

3.2  FC-1000 centre bundling machine 1set

3.3  Wire concentration seat 1set

3.4  Electrical control cabinet 1set

3.5  FC-630 core wire pay off rack 7heads/set*1set





Equipment models

FC-XB630

FC-XB800

FC-XB1000

FC-XB1250

Usage

It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.

Applicable dia(mm)

φ0.60-φ3.0

φ1.0-φ4.0

φ1.0-φ5.0

φ1.0-φ6.0

Max twist outer dia

φ15

φ20

φ25

φ30

Pitch(mm)

20-200

30-300

30-350

30-400

Direction of lay

Optional for right or left

Take-up bobbin size

φ630

φ800



φ1000



φ1250



Max rotating speed(rpm)

800

700

600

500

Traversing method

According to the bobbin rotation speed and reciprocating action, stepless control.

Take up tension

Pneumatic tension automatic regulate

Brake mode

Pneumatic booster brake

Bundling mode

Central bundling or side bundling

Replace pitch mode

Computer pitch
