Product Details:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 500/630/800/1000mm |
|---|---|---|---|
| Material: | PVC,PP,PE,SR-PVC | Wire: | BV Building Wire/ LAN Cable Wire |
| Injection: | 45horizontal | Take Up: | Shaft Or Coiling Machine |
| Screw Ratio: | 26:1 | ||
| High Light: | wire cable machine,single screw extruder |
||

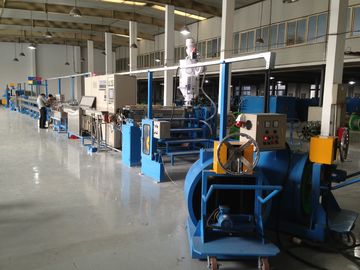

PP PE PVC Extrusion Machine 800M / Min Linear Speed For Core Wire Extrude
FC-80+45 high speed extrusion machine
Usage: Fit for PVC plastic ,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed wire,core wire extrude.
1. Inlet wire diameter:φ1.1mm
2. Finished wire :φ2.1-φ2.4mm
3. Linear speed: 800m/min
contains:
1) FC-630 lut barrels pay off machine(contains magnetic tension rack)
2) Five wheels straighting machine
3) φ45 injection machine
4) 80 extruder
5) U14 avoid head
6) 2.5meters movable warm water tank
7) blower
8) 8meters double layer spraying water tank
9) Diameter measure device
10) High speed printing machine
11) φ410double wheel hauling machine
12) φ410rotation box
13) spark tester
14) take up machine
15) Dryer
16) Insuction machine
17) Electric control part
