55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin

55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin
55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin 55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin 55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin 55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin

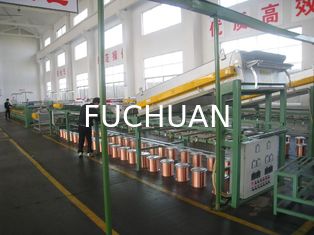

Large Image :  55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin

Product Details:
Place of Origin: CHINA
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-TX40
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD29666
Packaging Details: simply water proof packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C
Supply Ability: 500sets one year

55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin

Description
Pay Off Method: Brush Pay Off Number Of Inlet Wire: 40pcs
Machine Color: Sky Blue Or Apple Green Fit For Wire: 0.05-0.127mm
Pay Off Bobbin: Diameter 300mm Annealing Method: Tube Annealing
Max Speed: 300m/min
High Light:

copper wire annealing machine

,

cable coiling machine

55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin





Ultra-fine wire high speed annealing machine



Characteristics:



The technology of this machine is brought from Japan and put in production in Jiangsu.

Merits: Easy to operate, good annealing heat insulation, save power, adopt nitrogen or steam protection, have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry-leading level.



Specification:



Equipment models

FC-TX40

Twisting usage

It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.05-φ0.127 mm

Max numbers of inlet wire

40pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.0m

Annealing method

Tube annealing

Annealing protection method

Nitrogen protection or vapour protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

55kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

5inch,8inch bobbin

Traverse control method

Inverter+reducer motor control toothrow traverse

Installation size

24700L*2200W*2100H

















































55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin 0

55Kw 40Pcs Wire Tinning Machine Inverter Control With 8 Inch Take Up Bobbin 1
