Product Details:
|
| Fit For Wire: | 19pcs Copper Wires φ0.16mm - φ0.64mm In One Time | Fit For Bobbin: | Diameter 630 Or 250mm |
|---|---|---|---|
| Name: | Cable Twisting Machine | Pay Off Bobbin: | Dia180 Or Dia630 |
| Take Up Bobbin: | Dia630 | Can Replace: | Tube Bunching Machine |
| Stranding Section Area: | 0.38-6.0mm2 | ||
| High Light: | cable twisting machine,wire twist machine,Touch Screen Wire Bunching Machine |
||

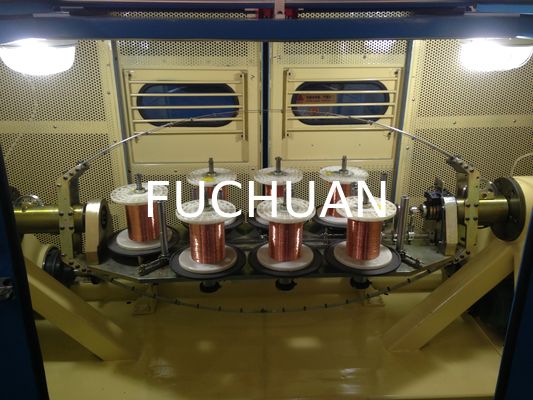

4000Twist Copper Wire Bunching Machine With Touch Screen Operation
Quick Details:
Apply for bunching 19pcs copper wires synchronous.
Characteristics:
1. Energy-saving, small size, low noise, etc.
2. New arrival, instead of 200 tube bunching machine,
3. Have high productivity(4.5times than normal tube machine for regular 1+6+12 conductors ),
Specifications:
| Equipment models | 1+6+12(200 and 250bobbin) | 1+6+12(630bobbin) |
| Twisting usage | Apply for bunching 19pcs copper wires synchronous | |
| Single wire dia(mm) | 0.16～0.64 | |
| Stranding section area (mm²) | 0.38～6.0 | |
| Pitch(mm) | 11.6-100(34classes) | |
| Direction of lay | Free to right or left | |
| Pay-off bobbin size | 8inch,9inch | OD630 ID125 H475 |
| Pay-off type | Mechanical friction | Magnetic powder tension |
| Take-up bobbin size |
OD630 ID127 H475 or OD630 ID56 H475 (Customized) |
OD630 ID127 H475 or OD630 ID56 H475 (Customized) |
| Max rotating speed | 2000rpm(4000twist) | 2000rpm(4000twist) |
| Pay-off machine power | 5.5KW | 7.5KW |
| Take-up motor power | 7.5KW | 7.5KW |
| Tension control | Touch screen+PLC+magnetic powder clutch, ensure the constant tension from empty to full bobbin | |
| Magnetic powder clutch | 5kgf | 5kgf |
| Protection |
automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived |
|
| Brake mode | Electromagnetic brake | |
| Traversing method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | |
| Operation | Touch screen | |
| Dimension(mm) | 10000L 2500W 1650H | 10000L 2500W 1650H |
