Product Details:
Place of Origin: China
Brand Name: Fuchuan
Certification: CE
Model Number: FC-1000 / 1250B/1250C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: with container
Delivery Time: 45days
Supply Ability: 500 sets per month

Monitoring system Double Twister For Conductor Stranding And Cores Cable Laying Up Touch Screen Operation Double Twister

Description
Color: Sky Blue Take Up Bobbin: Diameter 1250mm
Fit Copper Wire: 0.5mm-2.54mm Wire: Bare Copper Wires, 2) Tinned Wires, 3)silver Jacketed Wires ,4)enameled Wires, 5)double Twisting For Core Wires.
Direction Of Lay: Free To Left Or Right Operation Mode: Touch Screen Operation
Finish: Tempering And Grinding Cross Section: Max To 50 Square Meters
High Light:

Conductor Stranding Double Twister

,

Touch Screen Operation Double Twister

,

Touch Screen Operation Double Twister

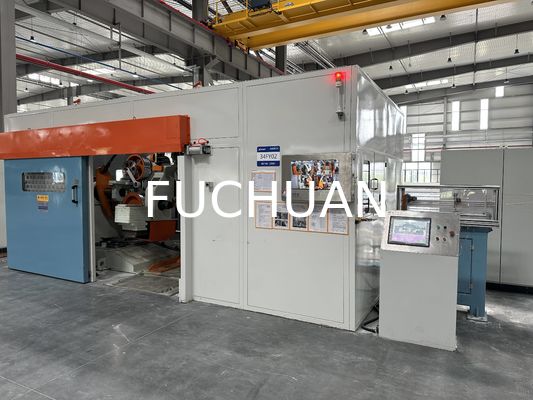

Fuchuan FC-1250B Copper Wire Bunching Machine


Quick Details:

Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires.

Characteristics:



Japan Technology, product in China

New arrival, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.


Specifications:

Equipment models FC-1000B FC-1250B FC-1600B
Twisting usage Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires.
Single wire dia(mm) 0.30-2.14 0.5-2.54 0.5-2.52
Stranding section area (mm²)

6.0~25.0



10.0~35.0



16.0~95.0



Core wire single wire dia(mm) 2.0~5.0 3.0~6.0 3.0-10
Core wire stranding outer dia(mm) 4.0~10.0 6.0~15.0 8.0~20.0
Pitch(mm) 35-200(12 classes) 50-250(12 classes) 80-350(12 classes)
Direction of lay Free for right or left

Take up bobbin

Outer dia*bore*outer width

1000*80*750 1250*80*950 1600*80*1180
Max rotating speed 1000rpm(2000twist) 800rpm(1600twist) 600rpm(1200twist)
Main motor power 18.5KW 22KW 30KW
Inverter power 18.5KW 22KW 30KW
Tension control Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 20kgf 20kgf 40kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension L*W*H(mm) 4000*2200*2100 4500*2600*2500

5000*3000*3000


Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
